Product Details:
|
| Product Name: | Industrial Food Drying Oven | Application: | Foodstuff Industry,chemocal Industry,medical Industry |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | 1 Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Other Name: | Fruit Vegetable Drying Oven | ||
| High Light: | Industrial Dehydrating Machine,Customized Dryer Oven Machine,Stainless Steel Dehydrating Machine |
||

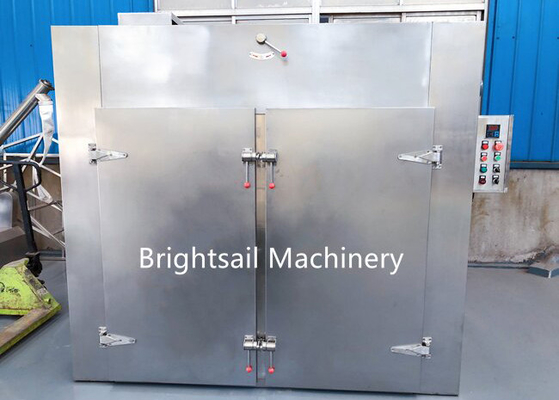

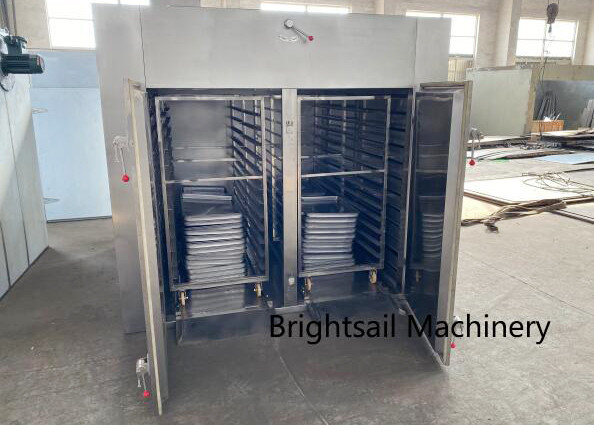

Customized Stainless Steel Food Industrial Dehydrating Machine For Vegetable Fruit
FAQ:
(1)Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Wuxi province. We are warmly welcome you visit our Factory if you have a travel plan.
(2)Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
(3)Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.
Packing and shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Working method:
This machine uses steam or electricity as heat energy, and there are steam radiator or electric heating element to generate heat. The fan is used for convective heat exchange to transfer heat to materials, and fresh air and humid air are continuously supplemented and discharged. The drying time box maintains the appropriate relative temperature and humidity, the biggest feature of which is that most of the hot air circulates in the box, thus enhancing the heat and mass transfer and saving energy.
Main features:
1. Most of the hot wind is circulated in the oven, bringing high thermal efficiency and energy saving.
2. The oven is equipped with adjustable air-distribution plates to evenly dry the materials by forces ventilation.
3. The whole machine runs in stable conditions, low noise, self-control temperature, easy maintenance, and wide applications.
Introduction:
BSO hot air circulation drying machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material.
It is widely used in heating and dehumidifying raw materials and production of pharmaceutics, chemical, foodstuff, light industry and heavy industry etc.
Please contact us if you have interests in our products.
