Product Details:
|
| Product Name: | Ginseng Grinding Machine | Material: | Stainless Steel |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| Key Word: | Herbal Grinding Machine | Other Name: | Chinese Medicine Coarse Grinder |
| High Light: | Ginseng Coarse Crusher,Industrial Stainless Steel ginseng grinding machine,Granules Making Machine |
||

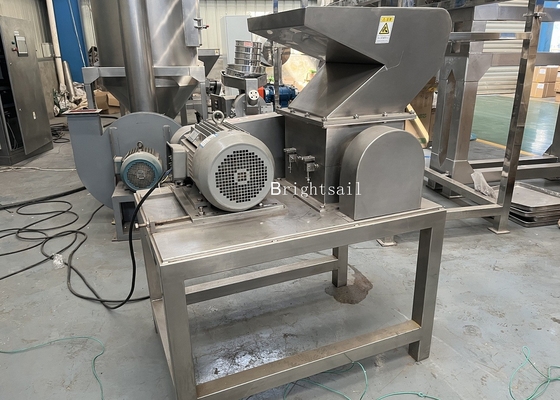

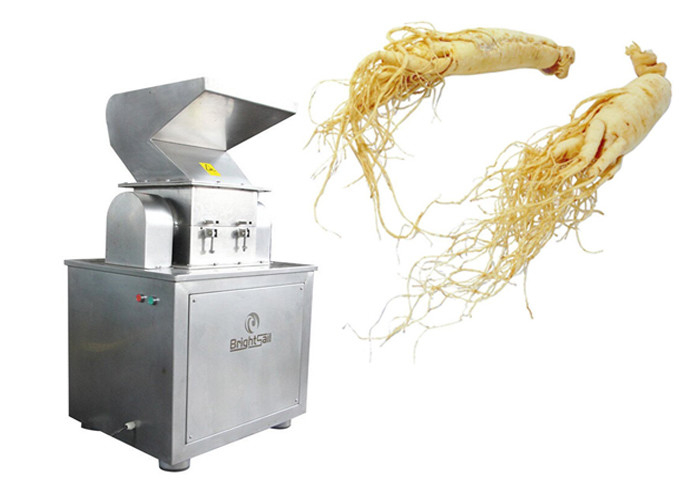

Industrial Stainless Steel 0.5 To 20mm Granules Making Machine Ginseng Coarse Crusher
FAQ:
Q1: Payment terms capacity?
A1: L/C, T/T, D/P, cash, Alibaba trade assurance.
Q2: Trade terms?
A2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIP, CIF and DDU.
Q3: Validity of quotation?
A3: Within 30 days.
Q4: Modes of shipment?
A4: By sea, by railway, by air and by express.
Q5: Warranty?
A5: One year and lifelong service provided at cost.
Q6: Installation and training?
A6: Usu. tel or mail guidance for installation, for production line, paid overseas engineering service provided.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 | 960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |
Product Introduction:
BSC Coarse Crusher is a machine that crushes large particle materials into small particles. It is widely used for coarse crushing of pepper, turmeric, Chinese herbal medicines, spices, etc.
This is the first step of powder equipment. In particular, it is not limited by the viscosity, hardness, softness and fiber shape of the material, and has good effects on various materials.
capacity 50-1000 kg/h outpue size0.5-20mm turmeric grinding machine
Main features:
The machine adopts horizontal crushing structure, and the whole machine is made of stainless steel. It has the characteristics of compact structure, convenient operation, stable operation, wear resistance, easy cleaning, low noise and good efficiency. It is the most ideal new product in the crusher Market at present.
There are two types for you to choose,one type is vertical type(the discharge port is behind the machine),another is table type(the discharge port is under the machine).
