Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSC
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden case or container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Dry Herb Pulverizer Leaf Powder Crusher Machine Turmeric Grinding Machine

Description
Product Name: Dry Herb Pulverizer Leaf And Turmeric Grinding Machine Type: Crusher For Coarse Grinding
Feed Size: <100mm Output Size: 0.5-20mm
Application: Food, Pharmacy, Chemical, Etc Usage: Make Small Pieces
Capacity: 50-1000kg/h Feature: Change Output Size By Sieve
Material: SS304/SS316L Function: Grinding
High Light:

Dry Herb Pulverizer

,

Leaf Powder Crusher Grinding Machine

,

Turmeric Powder Grinding Machine

Dry herb pulverizer leaf and turmeric grinding machine



How BSC coarse crusher works:

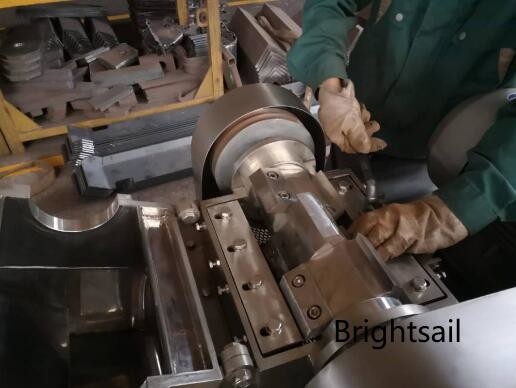

There are both fixed cutters and movable cutters inside the crusher chamber. The dried materials come from the hopper into the chamber then get crushed by the relative action of the two type cutters. For materials smaller than the sieve hole size, they would get discharged from the crusher, for size larger, it would continue to be crushed in the mill chamber.

Dry Herb Pulverizer Leaf Powder Crusher Machine Turmeric Grinding Machine 0



The function of coarse crusher:

BSC coarse crusher(leaf grinder) is applied as supporting equipment before fine crushing process in lines of pharmaceutical,chemical and foodstuff etc. It has a good effect for most materials.
It is suitable for making granules or be used as a primary mill.



Technical data:

Model
BSC-200
BSC-300
BSC-400
BSC-600
Capacity(kg/h)
80-300 100-800 200-1000 500-1500
Size of input granules (mm)
<100 <100 <100 <100
Crushing Fineness(mm)
0.5-20 0.5-20 0.5-20 0.5-20
Speed of principal axis(rpm)
960 960 960 960
Motor power(KW)
3 5.5 7.5 11
Overall Size(L*W*H) (mm)(Type B)
900*600*1140 900*700*1440 900*800*1440 1000*900*1440
Weight(Kg)
200 300 380 500



Application:

It is widely applied to food, chemical, pharmacy and many other fields for crushing dried materials into small granules.

Dry Herb Pulverizer Leaf Powder Crusher Machine Turmeric Grinding Machine 1

Company Introduction:

We Brightsail Machinery has specialized in the manufacturing of grinder machine for years. We stick to give our clients quality
machines and best service. Honesty is our first principle when doing business. Within years, we have exported machines to New Zealand, Spain, Mexico, Thailand, Indonesia and many other countries.

Hope to create better pictures with you.
Dry Herb Pulverizer Leaf Powder Crusher Machine Turmeric Grinding Machine 2

capacity 50-1000 kg/h outpue size0.5-20mm turmeric grinding machine

Please connact us if you have any intersts in our leaf grinder:
