Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder
Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder

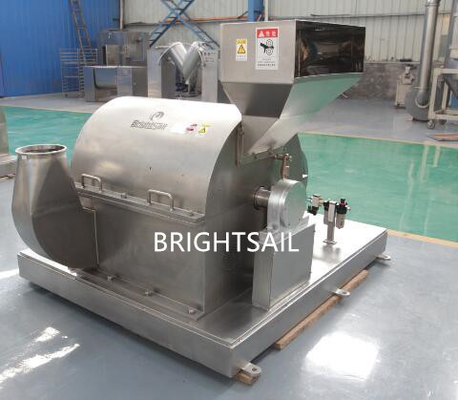

Large Image :  Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BrightSail
Certification: CE ISO
Payment & Shipping Terms:
Price: $2,700.00/Sets >=1 Sets
Packaging Details: Brightsail chickpea soybean flour milling machine pigeon pea besan plant lentils bean grinder machine<br>wooden case or container
Supply Ability: 50 Set/Sets per Month

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder

Description
Output (kg/h): 100 - 1300 Kg/h Feeding Size (mm): 1 - 30 Mm
Output Size (mesh): 20 - 150 Mesh Power (kW): 22
Range Of Spindle Speed(r.p.m): 3500 - 4500 R.p.m Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New Type: Pulverizer
Product Type: Hammer Grinder Voltage: Customized
Dimension(L*W*H): Depends Weight (KG): 1800 KG
Warranty: 1 Year Key Selling Points: 3 Stage Grinding Type
Applicable Industries: Food & Beverage Factory, Chemical &Pharmacy Factory Showroom Location: None
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor Machine Name: Chickpea Besan Processing Grinding Equipment Gram Flour Mill Machine
Material: SUS304/316 Usage: Making Feed, Spice Powder, Flour
Weight: 0.5T-20T Keyword: No Need Screen/sieve
After Warranty Service: Video Technical Support, Online Support Local Service Location: None
Port: Shanghai Port
High Light:

Chickpea Soybean Flour Milling Machine

,

1300kg/h Soybean Flour Milling Machine

,

Lentils Bean Grinder Machine

Brightsail chickpea soybean flour milling machine pigeon pea besan plant lentils bean grinder machine

Detailed images

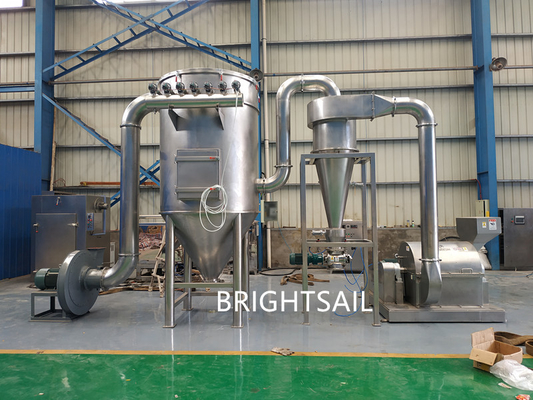

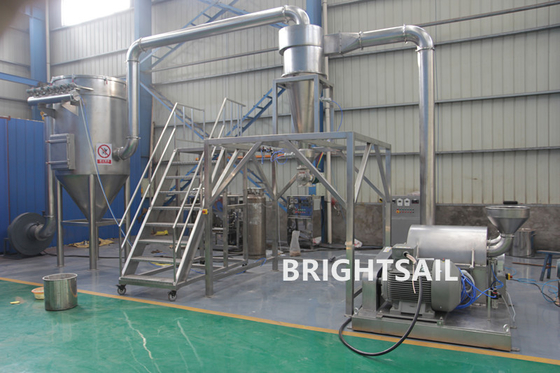

BSDF gram flour machine includes:

1) mill part

2) cyclone (discharge system)

3) dust collect system

4) blower

Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.

The production process is dust-free and continuous. BSDF gram flour machine is suitable for grinding cassava, chickpea, spices, like ginger, turmeric, chilli...etc.

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 0



TECHNICAL DATA OF GRAM FLOUR MACHINE



Model
BSDF-750
BSDF-650
BSDF-550
BSDF-450
rotor speed (rpm)
2100-2700
2400-3100
2900-3600
3300-4200
hammer knife qty (piece)
136
112
80
80
grind motor (kw)
75
55
45
37
discharge motor (kw)
1.5
1.1
1.1
0.75
blower (kw)
22
18.5
18.5
15
grind fineness (mesh)
20-120
20-120
20-120
20-120
capacity (kg/hr)
800-1300
600-900
400-800
300-500

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 1

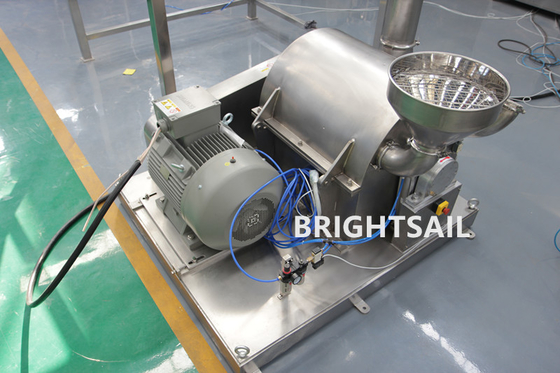

Detailed Images

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 2



Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 3

Main features for gram flour machine

1) No need screen or sieve in mill chamber, change powder particle size by changing speed;



2) Because it has no screen in mill chamber, when milling, there is no heat rising in mill chamber;

No need to worry powder get stuck in the screens or product quality get affected by the heat from  the mill.

That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.



3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.



4) It can save more power, its capacity is much bigger than other same motor traditional mill.

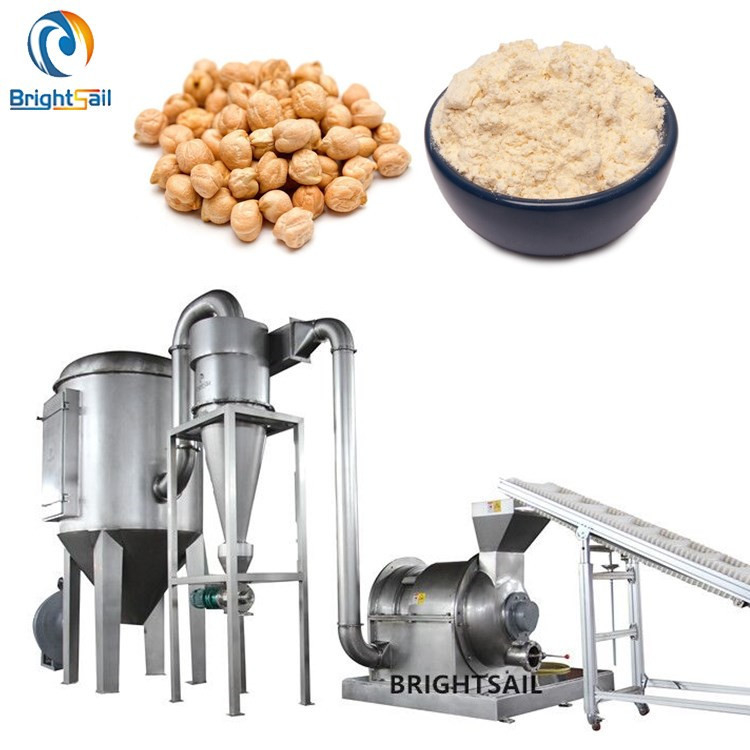

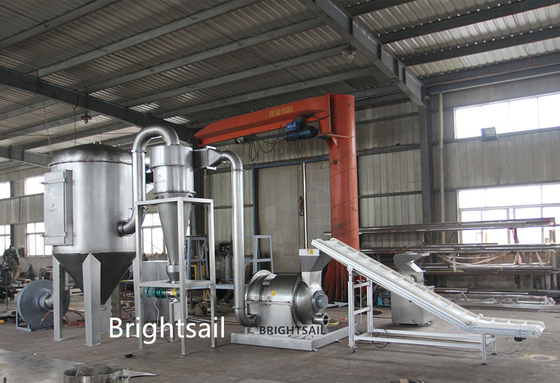

Applications for gram flour machine

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 4Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 5

Certifications

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 6

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 7

Our Company

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 8



Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.

Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted manufacture of creative and value added process solutions.

Overseas Clients

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 9

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 10

Our Services

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 11

Packaging & Shipping

Chickpea Soybean Flour Milling Machine 1300kg / H Lentils Bean Grinder 12

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.

*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.

Contact Us

Frequently Asked Questions:

Could you pls tell us:

1) What is your raw material? Is it dry?

2) What powder particle size you need? for example, 40 mesh, 60 mesh, 80 mesh,120 mesh...etc

3) What capacity you need? (kg/hr) like 100 kg/hr, 300 kg/hr, 500 kg/hr, 1000kg/hr....etc

4) Voltage: for example, 380V 50Hz 3P; 440V 60Hz 3P; 220V 60Hz 3P...



Please kindly note that 2,700usd is our BS-180 hammer mill's price and BS-180 is our smallest model. The price is related to the capacity and your specific requirements.

We will give you a detailed quotation according to your requests.
