Product Details:
|
| Production Speed: | Wet Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Stirrer Speed (R.P.M): | 20-200 | Mixing Power (KW): | 5.5-30 |
| Cutting Knife Speed(R.P.M): | 50-3000 | ||
| High Light: | mixing granulator 400L,Wet Mixing Granulator Rapid Mixer,800L Wet Granulator Mixer |
||
800L Wet Mixing Granulator Rapid Mixer Granulator Industry Brightsail
Description:Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical Wet Mixing Granulator
BSSF Medical Wet mixing granulator is a new generation of granulating equipment developed by our company, which can finish the procedures of mixing, wetting, granulating in one time. Which is very effective and in compliance with GMP standard.
Principle:
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material.
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical Wet Mixing Granulator

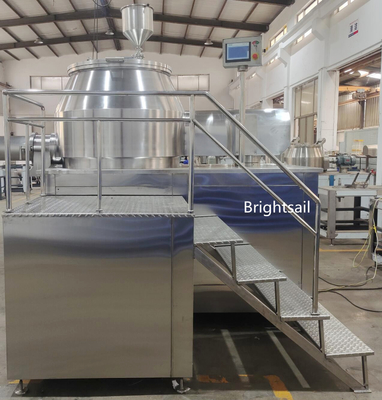

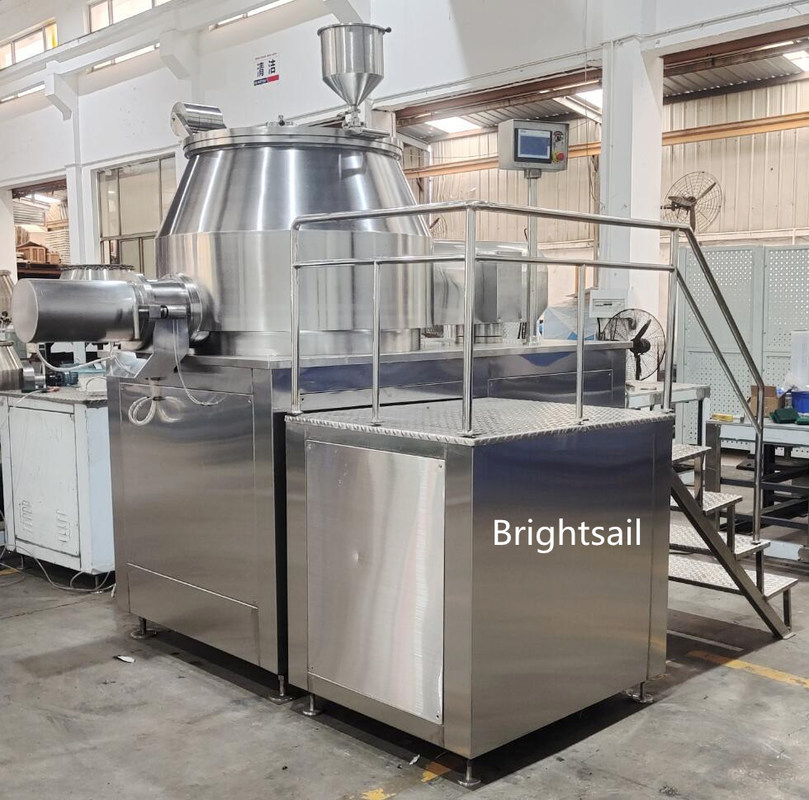

Detailed Images :
Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical Wet Mixing Granulator
Features :
1: The main barrel adopts a cylindrical and conical tangent structure, which is helpful for the tumbling of the material, and thegeometric angle of the stirring blade and the pelletizing knife is designed reasonably to ensure the best effect of mixing andgranulating.
2: PLC control man-machine interface, automatic adjustment control according to program, high degree of automation, easy operation
3: Both the stirring blade and the cutting knife adopt frequency conversion speed regulation, and the speed can be adjusted
arbitrarily, which can meet the granulation requirements of different varieties.
4: The whole process completes dry mixing and wet mixing granulation in the same closed container. Compared with the traditional process, the binder is reduced by 25%, and the drying time is shortened.
5: V-shaped pelletizing knife, there is no dead angle between the knife and the knife, which can improve the granulation rate and the rate of pellets.Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical Wet Mixing Granulator
