Product Details:
|
| Product Name: | Black Pepper Powder Grinding Machine Turbine Type Universal Crusher | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <10mm | Output Size: | 10-120 Mesh |
| Capacity: | 20-800 Kg/h | Voltage: | 220-480 V |

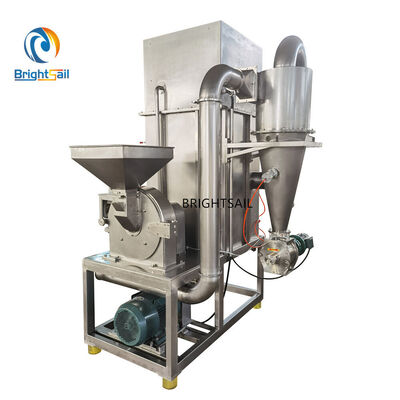

Black pepper powder grinding machine turbine type universal crusher
Our BSG universal crusher can grind various materials such as spices, grains, herbs, sugar, and more, including black pepper and many other spices. There are three interchangeable rotor types: hammer type, turbo type, and pinned disc type. Depending on the material and how fine you want the powder, we recommend the most suitable rotor type.

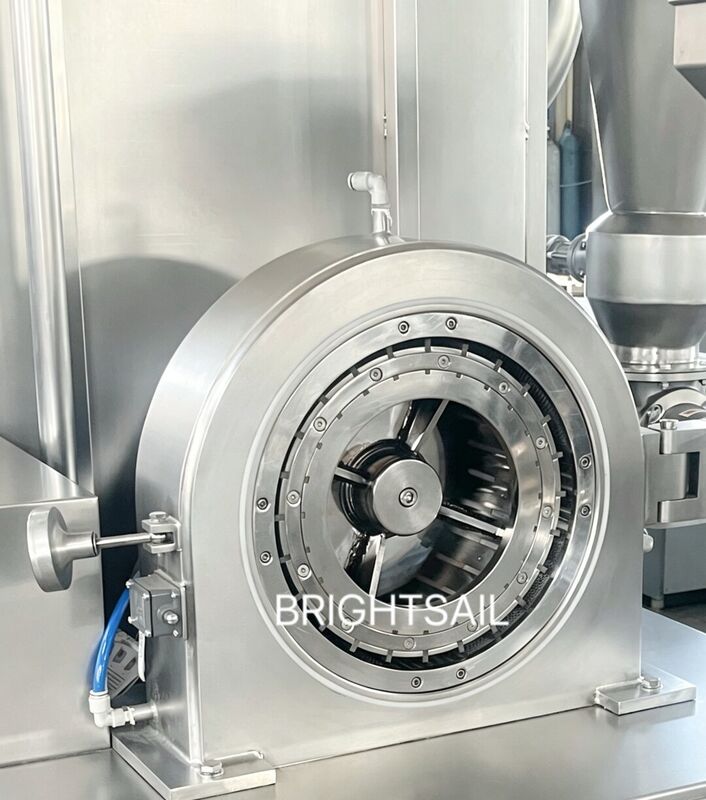

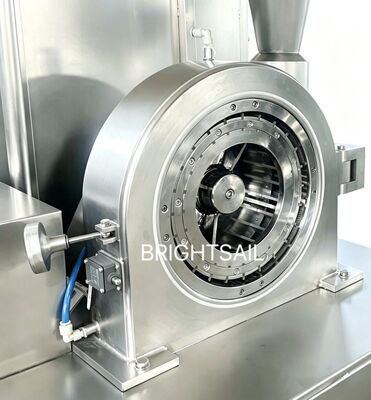

Working principle (turbo type):
After the material enters the crushing chamber, the high-speed rotating turbo disc and the fixed disc create a strong airflow. The material is crushed by hitting each other, as well as by the impact and cutting action of the discs. The strong airflow also cools down the chamber, preventing black pepper and spices from overheating and keeping their pure flavor and aroma. The fine powder passes through the mesh screen. Particles that are too large stay inside and keep being crushed until they reach the required fineness.
Main features:
1. Simple structure – easy to operate and clean. The turbo type is especially easy to take apart and clean, meeting food safety requirements.
2. Low power consumption.
3. Low cost – suitable for grinding most materials. The turbo type is especially cost-effective for oily or heat-sensitive materials like black pepper and spices, producing fine, uniform powder while keeping the natural aroma.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 |
| Capacity (kg/h) | 50-300 | 50-400 | 100-700 | 300-2000 |
| Size of output granules (mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main motor (kw) | 7.5 | 11 | 15 | 22 |
| Discharge motor (kw) | 0.55 | 0.75 | 0.75 | 1.1 |
| Blower (kw) | 3 | 3 | 5.5 | 11 |
| Speed of main shaft (rpm) | 4000 | 3400 | 3000 | 2800 |
Video of our BSG turbine grinder machine processing black pepper:
FAQ:
1. Q: Is the powder size adjustable?
A: Yes, the powder size can be changed by changing different size screens.
2. Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
3. Q:Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
