Product Details:
|
| Fineness: | 60-2500 Mesh | Port: | SHANGHAI CHINA |
|---|---|---|---|
| Materials: | Cocoa, Rice,chilli...etc | Output Product Name: | Powder Flour |
| Work Voltage: | Customized | Productname: | Powder Grinder Machine |
| Advantage: | High Effieciency | Feature: | High Efficiency Easy Operation |
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade

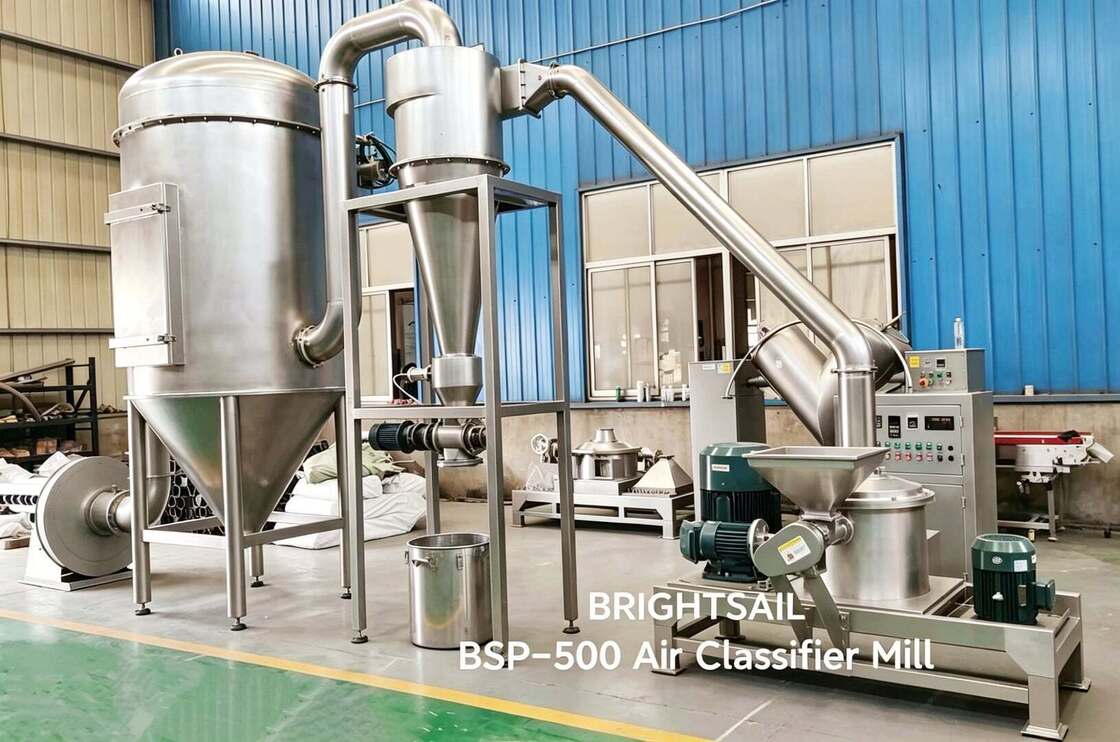

BSP Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
is made up of 5 parts: crusher part, cyclone part, pulse dust collecting box, blower and electric control box. It has the air classifer inside, can make very fine and even powder.
The production process goes on continuously, and no needs screens/sieves, final particle size can be changed by the inverter. BSP powder pulverizer can be used for food, pharmaceutical, chemical and mineral industries. It is suitable for grinding dry herb, grain, spices...etc.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 30-2500 | 30-2500 | 30-2500 | 30-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | ~6500 | ~5350 | ~4600 | ~3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
Main features:
1.Screenless Design & No Blockage: The innovative air classifier mill design avoids screen blockage, ensuring stable continuous production and higher efficiency.
2.Superior Ultra-fine Grinding: Can produce ultra-fine powder up to 2500 mesh, exceeding conventional hammer mills, ideal for high-value cocoa powder applications.
3.Precise Fineness Control: Adjust the classifier wheel speed to easily control product fineness (30-2500 mesh) and meet diverse needs.
FAQ
Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
Q: What is the material of the machine?
A: Stainless steel 304 is our standard material.
Sometimes,we also use SS316 as customer requests.
Q: Does the machine have GMP certificate?
A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.
But our machine can be applied in food and pharmaceutical’s production
