Product Details:
|
| Product Name: | Terephthalic Acid Lump Air Classifier Mill & Ultrafine Powder Mill For Chemical Industry | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |

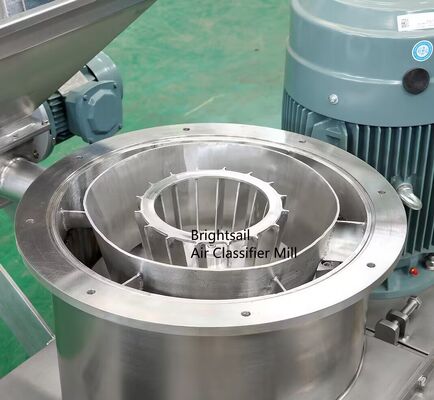

Terephthalic Acid Lump Air Classifier Mill & Ultrafine Powder Mill for Chemical Industry
This Terephthalic Acid Lump Air Classifier Mill is an ultrafine powder mill purpose-designed for grinding TPA/PTA lumps and blocks into consistent fine powder. Impact grinding and air classification are combined in one closed system, so lumps go in and classified powder comes out in a single pass — fineness matched to your polyester, PET or powder-coating formulation, with no chemical dust escaping the loop.
Advantages:
1) Adjustable fineness: Built-in air classifier enables fineness adjustment; stable D50 with minimal oversize/undersize particles for consistent downstream batch quality.

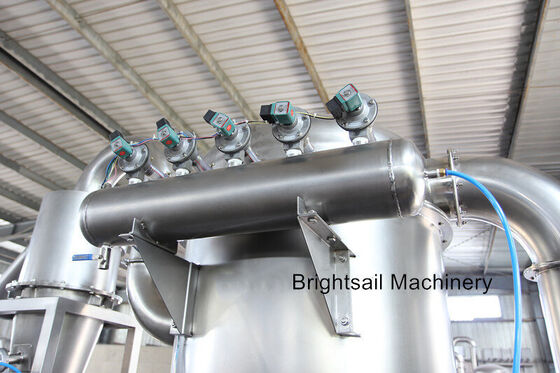

2) Sealed negative-pressure system with pulse-jet dust collection The whole loop runs under slight negative pressure; cyclone separation plus pulse-jet bag filtration keeps dust inside, the workshop clean, and material loss minimal.
3) Chemical-grade materials and tool-free maintenance Stainless steel 304/316L contact parts on request; long-wear parts with fast spare-parts supply.
Technical data:

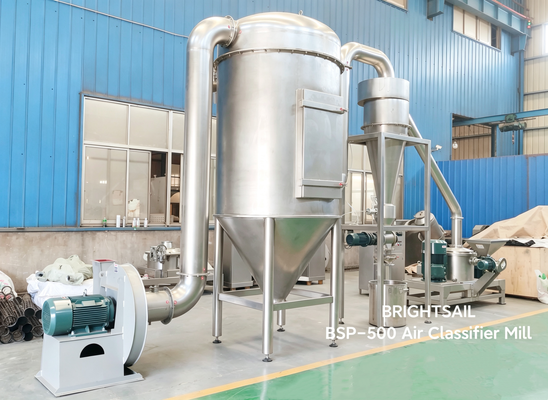

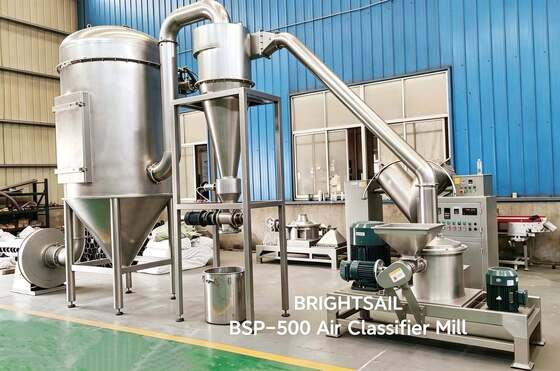

| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 30-2500 | 30-2500 | 30-2500 | 30-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | ~6500 | ~5350 | ~4600 | ~3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
FAQ
Q: Is the powder size adjustable?
A: Yes, the powder size can be changed by setting the parameter of inverter.
For example, if you want finer powder, you can try 25 Hz, if not fine enough,then try 30HZ, 35Hz...etc.
Q: Does the machine have GMP certificate?
A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.
But our machine can be applied in food and pharmaceutical’s production
Q: Can I see the working machine in user’s factory?
A: It depends, you shall contact our sales to check.
And most companies don’t allow strangers to visit their factory. Only a few allow,so please contact our sales to check whether it is possible.
