Product Details:
|
| Name: | Calcium Citrate & Magnesium Lactate Universal Crusher | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Other Name: | Powder Grinder Machine |
Calcium Citrate & Magnesium Lactate Universal Pharma Grade Universal Grinding Machine
Universal Crusher uses a high-speed rotating toothed disc against a fixed disc to crush and pulverize crystalline food and pharmaceutical powders such as calcium citrate and magnesium lactate. A quick-change sieve controls the output fineness, while the fully enclosed, food/pharma-grade stainless chamber delivers low-dust, low-noise, easy-clean grinding — one machine handling a wide range of mineral salts, additives and excipients.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working principle:

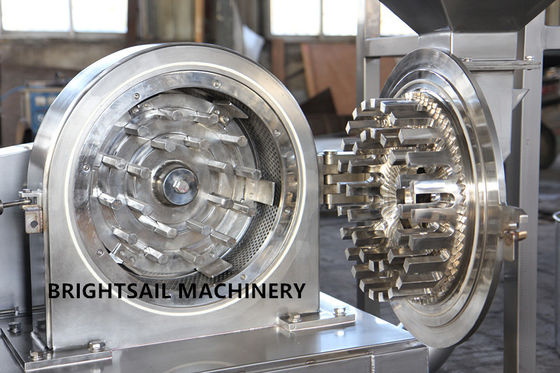

A high-speed rotating disc and a stationary disc crush the material as it passes between the toothed rings.
Ground powder is classified by a replaceable sieve/screen — fineness is set simply by changing the mesh.

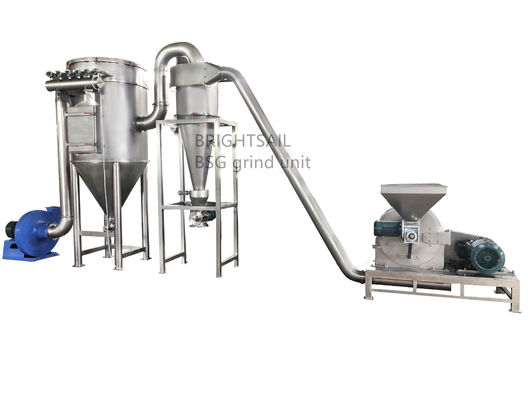

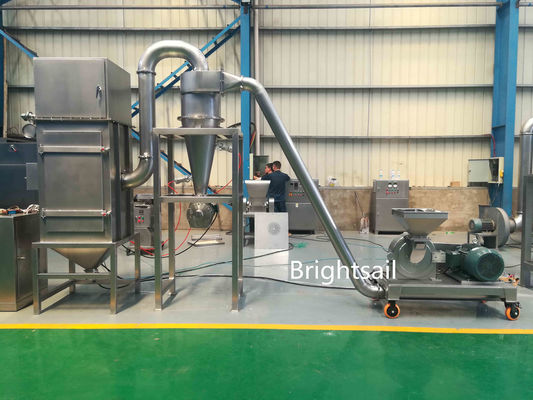

The finished powder is discharged into a collection bag / cyclone + dust collector, keeping the working area clean.

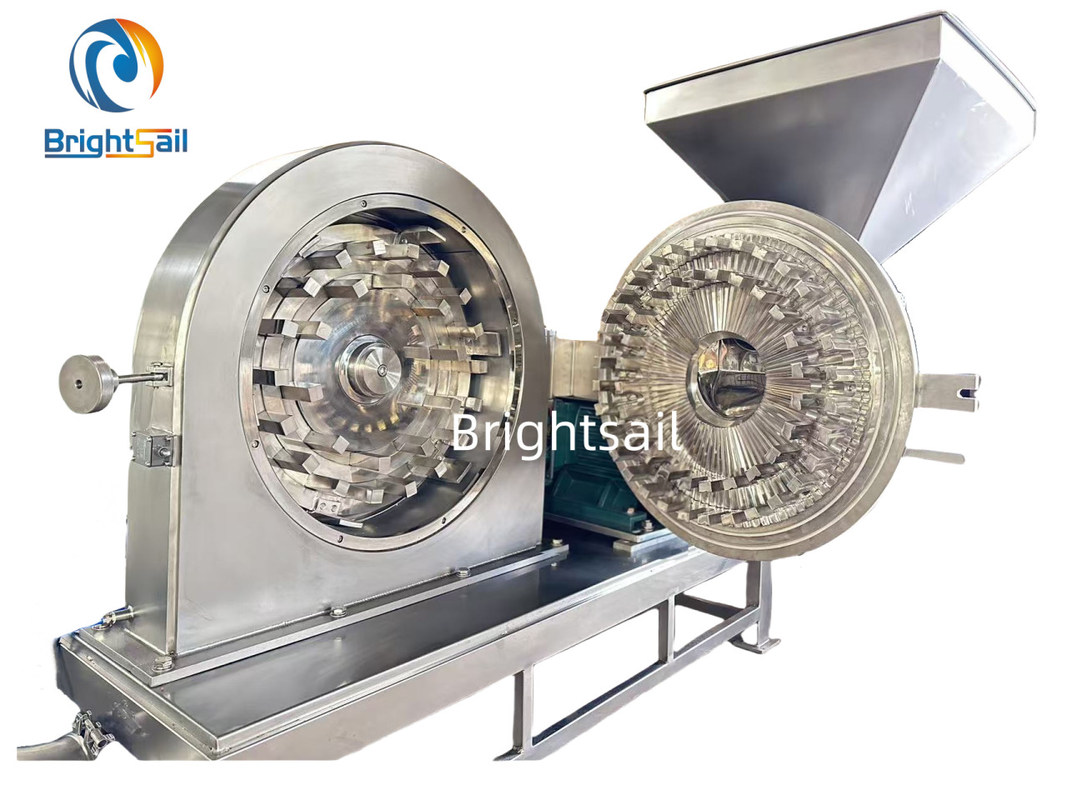

A door-type quick-open chamber allows the disc set and sieve to be swapped and cleaned in minutes for different products.
This is a video showing our BSG universal crusher:
FAQ:
1) Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
2) Q: To get a detailed quote or to choose a suitable model grinder, what buyer shall provide?
A: 1) raw material name?
2) capacity the buyer needs to produce? kg/hr
3) target powder size the buyer needs? like 20 mesh, 30 mesh, 40 mesh, 60 mesh...etc
3) Q: Is the powder size adjustable?
A: Yes, the powder size can be changed by changing different size screens.
