Product Details:
|
| Product Name: | Dry Food Spice Grain Herb Powder Grinder Pulverizer Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | pin mill grinding machine,flour blending machine |
||
Superfine grain flour wheat rice cassava powder grinder pulverizer machine

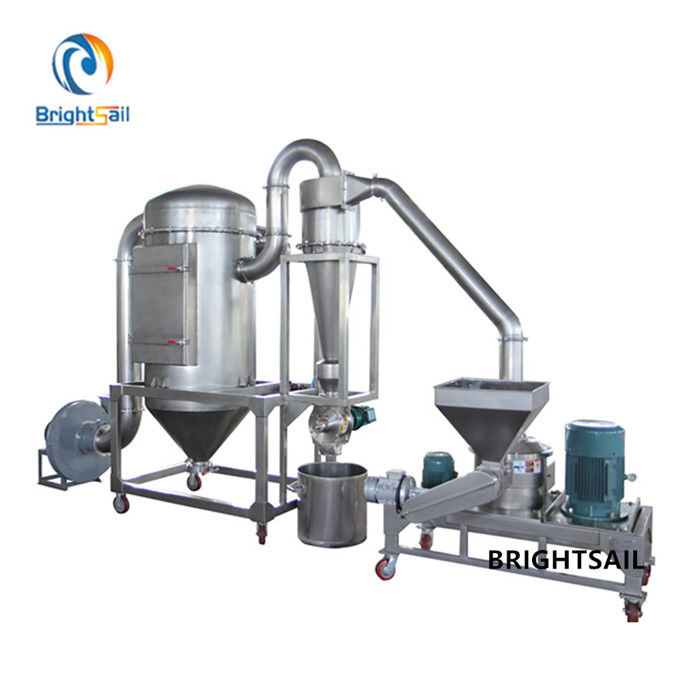

BSP ultra-fine pulverizer is made up of crusher, cyclone, dust collector, blower and electric control box with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why BSP ultra-fine pulverizer can make super fine powder and can be used as a fine powder grinder.
Main components:

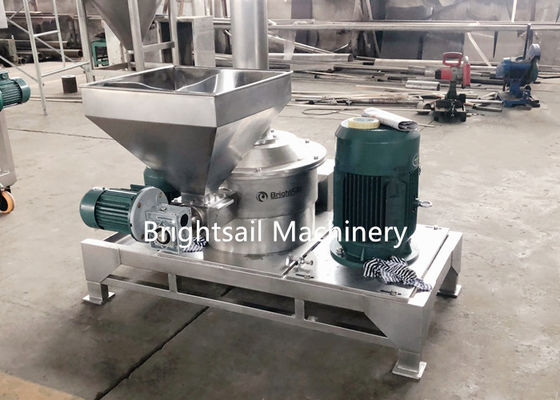

1. Crusher part:The left motor is crush motor,and the right motor is classfifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.

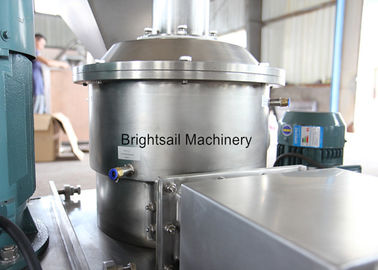

2. Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber.
3. Cyclone part:cyclone can seperate dust from powder(granules).Rotary valve make powder discharge speed even,and is also made of stainless steel.It is convinent to clean and dismantle.
4. Pulse Dust Collecting box:dust is collected inside the dust collecting box.Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.With pulse-jet cleaning, dust can be collected very conviniently.
Main features:
1) Simple structure, easy in installation and maintenance.
2) Adopting advanced world famous brand motor, electric parts, bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) No need screen, particle size can be changed by change speed.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |

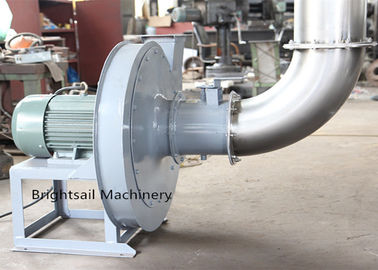

| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
