Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender

Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender
Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender
Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender

Large Image :  Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSR
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender

Description
Product Name: Horizontal Ribbon Blender Application: Food,chemical,pharmaceutical,etc
Speed(rpm): 17-62 Applicable Materials: Dry Powder,granules
Material: Stainless Steel 304/316 Volume: 60-12000L
Other Name: Ribbon Blender Mixer Another Name: Ribbon Mixer
High Light:

ss304 industrial ribbon mixer

,

large capacity horizontal industrial ribbon mixer

,

ss304 horizontal ribbon blender

Industrial Large Capacity Horizontal Ribbon Blender Ribbon Mixer



Company Information
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, drying machines...etc.

Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted provider of creative and value added process solutions.



Why Choose Us
Within years, we have exported machine to over 70 countries.

For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.

So you do not need to worry about the export procedures because we know all the procedures.



Product Description

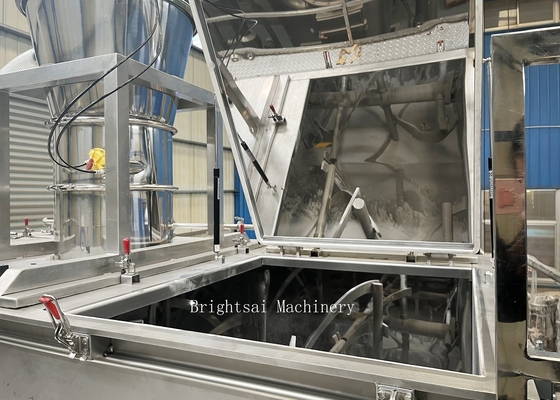

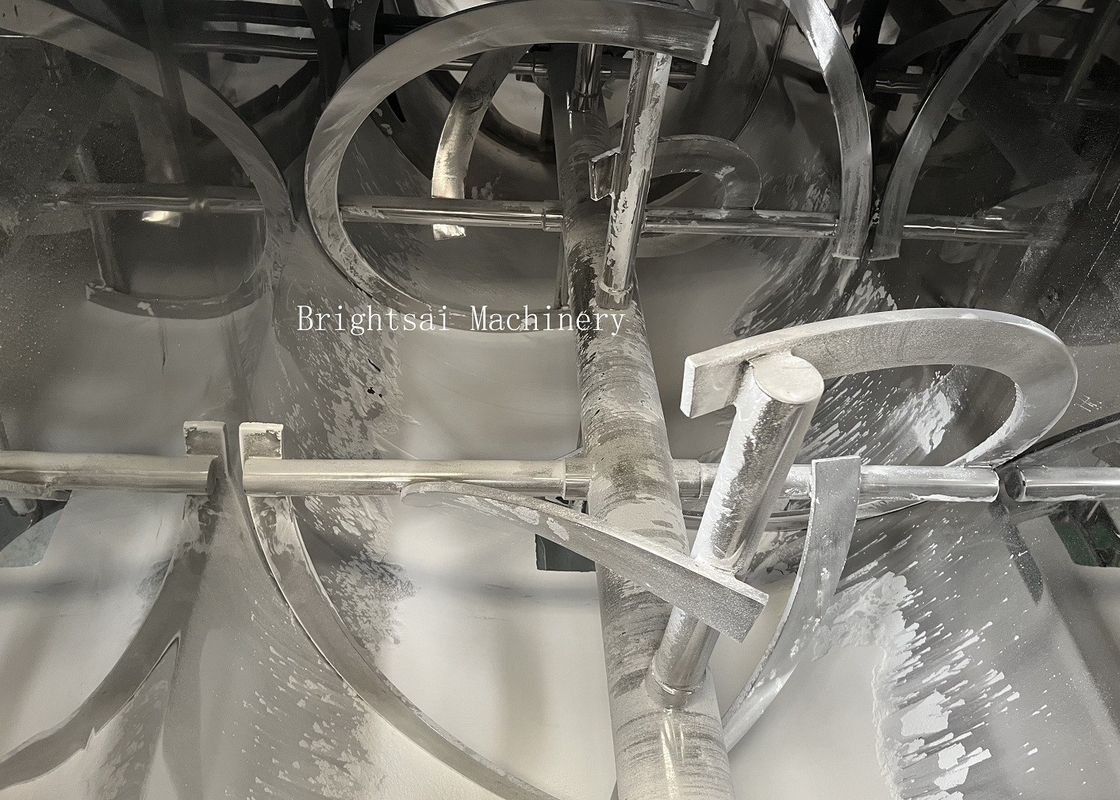

The horizontal belt mixer is composed of U-shaped cylinder, driving part and belt mixing blade. The belt stirring blade is usually two or three layers. The outer screw gathers the materials laterally to the center, and the inner screw transports the materials from the center to both sides to form convective mixing.



Technical Datawhey protein powder ribbon blender

Model Max work volume(L) Speed(rpm) Motor(kw) Overall size(L*W*H)(mm) Weight(kg)
BSR-100 60L 62 3 1080*758*615 330
BSR-300 180L 49 5.5 1550*812*1015 780
BSR-500 300L 46 7.5 1975*1059*1120 955
BSR-1000 600L 35 11 2340*1380*1455 1400
BSR-2000 1200L 33 15 2480*1651*1805 2500
BSR-3000 1800L 33 18.5 2945*1896*1980 3300
BSR-4000 2400L 29 22 3038*1946*2205 3600
BSR-5000 3000L 29 30 3932*2010*2035 4320
BSR-6000 3600L 26 37 3938*1882*2246 5300
BSR-8000 4800L 26 45 3986*2160*2516 6800
BSR-10000 6000L 19 55 4500*2270*2667 8900
BSR-15000 9000L 17 75 5363*2470*3020 9950
BSR-20000 12000L 17 90 5670*2650*3497 11140



Working Method

The patented technology of the utility model drives the materials in the barrel to rotate through the inner diameter and outer diameter screws installed on the stirring shaft, so that the mixer drives the animals in the barrel to rotate to the maximum extent. In the agitator structure, the screw is designed as an inside-out reverse spiral and a left-to-right reverse spiral. When the agitator is working, the inner screw carries the animal material, rotates near the shaft, and pushes both sides of the shaft. Axial rotation generates axial thrust on both sides, so that the material is convective, sheared and mixed in the pipeline, so that the material can be quickly and uniformly mixed in a short time.



Main Features

1. The horizontal U-shaped structure is simple and convenient for installation and maintenance.

2. Advanced components of world-famous brands are adopted for pneumatic components, motors, electrical components, bearings and operating components.

3. Both sides of the belt mixer are sealed.

4. The bunker has a safety net.

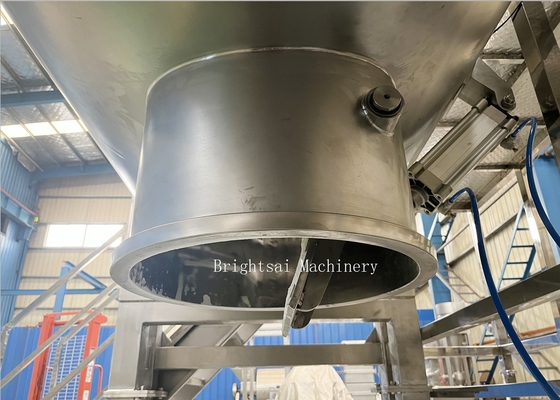

5. Pneumatic discharge valve.


 Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender 0

Ss304 Industrial Ribbon Mixer Large Capacity Horizontal Ribbon Blender 1
