Food Mixer Horizontal Ribbon 3kw Grain Powder Machine

Food Mixer Horizontal Ribbon 3kw Grain Powder Machine
Food Mixer Horizontal Ribbon 3kw Grain Powder Machine
Food Mixer Horizontal Ribbon 3kw Grain Powder Machine Food Mixer Horizontal Ribbon 3kw Grain Powder Machine Food Mixer Horizontal Ribbon 3kw Grain Powder Machine Food Mixer Horizontal Ribbon 3kw Grain Powder Machine

Large Image :  Food Mixer Horizontal Ribbon 3kw Grain Powder Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSR
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Food Mixer Horizontal Ribbon 3kw Grain Powder Machine

Description
Product Name: Whey Protein Powder Blender Application: Food,chemical,pharmaceutical,etc
Power: 3-90kw Advantage: Wide Application
Material: SUS304,SUS 316,carbon Steel Volume: 50-20000L
Other Name: Whey Protein Plant Machine Warranty: One Year
High Light:

3kw grain powder machine

,

sus304 ribbon blender mixer

,

20000l grain powder machine

Food Powder Mixer Horizontal Ribbon Mixing Whey Protein Plant Machine

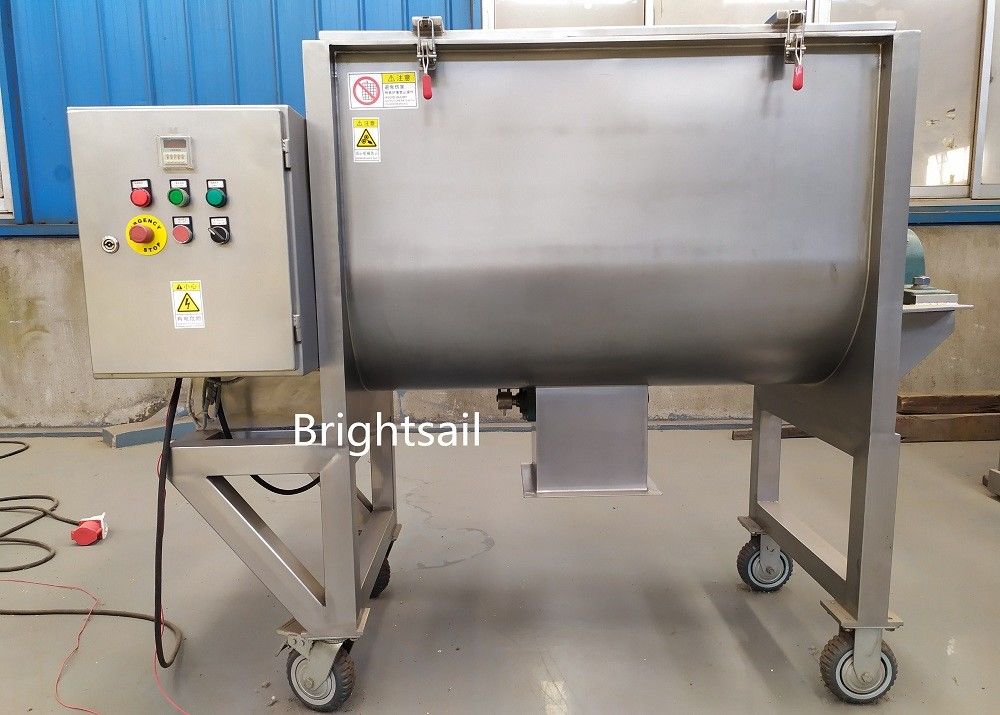

Our BSR ribbon mixer consists of a u-shaped trough, screw and drive components. The Outer Helix delivers material moving from both sides to the center, while the inner helix delivers material moving from the center to both sides for efficient convection mixing. Can Be mixed with a variety of materials, especially with a cohesive or cohesive power of the powder, granular materials, or in the powder, granular materials to add a small amount of liquid, and materials.



Technical data:whey protein powder blender

Model Max work volume(L) Speed(rpm) Motor(kw) Overall size(L*W*H)(mm) Weight(kg)
BSR-100 60L 62 3 1080*758*615 330
BSR-300 180L 49 5.5 1550*812*1015 780
BSR-500 300L 46 7.5 1975*1059*1120 955
BSR-1000 600L 35 11 2340*1380*1455 1400
BSR-2000 1200L 33 15 2480*1651*1805 2500
BSR-3000 1800L 33 18.5 2945*1896*1980 3300
BSR-4000 2400L 29 22 3038*1946*2205 3600
BSR-5000 3000L 29 30 3932*2010*2035 4320
BSR-6000 3600L 26 37 3938*1882*2246 5300
BSR-8000 4800L 26 45 3986*2160*2516 6800
BSR-10000 6000L 19 55 4500*2270*2667 8900
BSR-15000 9000L 17 75 5363*2470*3020 9950
BSR-20000 12000L 17 90 5670*2650*3497 11140



Working method:whey protein powder blender

The utility model is driven by an inner diameter and an outer diameter screw installed on a stirring shaft to rotate the material in the barrel so that the mixer can rotate the animals in the barrel to the maximum extent. In the agitator structure, the spiral design for the inside and outside of the reverse spiral, left and right for the reverse spiral. When the agitator works, the inner screw drives the material rotating shaft near the shaft, and the axial direction is pushed inward to both sides. Axial rotation, axial thrust from the two sides, so that the material in the Tube convection, Shear, mixing, material in a short period of time, rapid and uniform mixing.



Main features:whey protein powder blender

1. The u-shaped long cylinder structure ensures that the mixed material (powder, semi-fluid) has low resistance to movement in the cylinder.

2. The positive and negative rotating screw rods are installed on the same horizontal axis to form a low-power, high-efficiency mixed environment. The ribbon blades are generally made into two or three layers. The outer spiral gathers the material on both sides into the center and the inner layer. The spiral transports the material from the center to both sides, so that the material forms more eddy currents in the flow. Speed up the mixing speed and improve the uniformity of mixing;

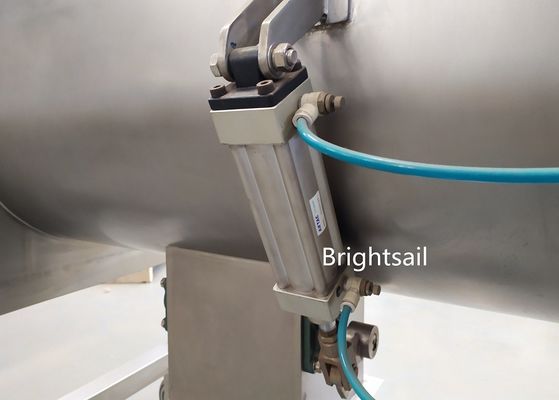

3. Unloading method at the bottom of the belt mixer: The powder material adopts a pneumatic large opening structure, which has the advantages of fast discharge and no slag;

4. For high-precision materials or semi-fluid materials, Manual butterfly valves are pneumatic butterfly valves. The manual butterfly valve is economical and applicable. Pneumatic butterfly valve has good sealing performance for semi-fluid, but the cost is higher than manual butterfly valve.

5. Where heating or cooling is required, a jacket can be configured.



Food Mixer Horizontal Ribbon 3kw Grain Powder Machine 0



Detailed Images:

Food Mixer Horizontal Ribbon 3kw Grain Powder Machine 1



How Can I Buy This Machine?
First of all, discuss all machines details and price with our sales person.

Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.

Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.

At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
