Product Details:
|
| Product Name: | Double Cone Powder Mixer Blender Mixing Blending Machine | Material: | SS304/316 |
|---|---|---|---|
| Volume: | 180-4000L | Warranty: | One Year |
| Mixing Time: | 4-10 Min | Power: | 1.1-11kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | pin mill grinding machine,plantain grinder machine |
||

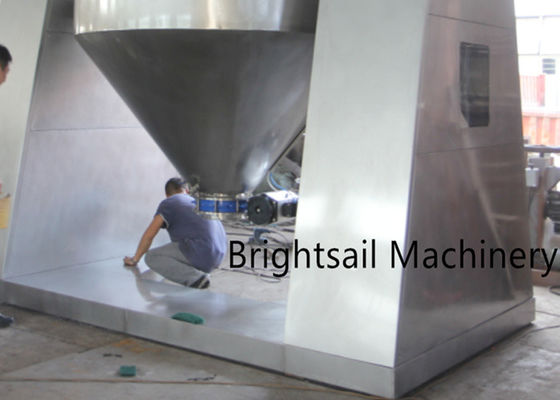

Grain flour powder blending machine wheat rice powder double cone mixer machine
BSW double cone mixer is applicable to mix dry granule material for pharmaceutical industry, foodstuff industry, chemical industry and other relative industries.
It has remarkable effect in mixing powders and particles with relatively good fluidity. With the each Index reaching the standard of same kind of foreign product, it's barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appeatance and easy operation.
Working method:
The machine absorb foreign products advantage to design, because two barrels length are not same will not asymmetry ; when the mixer revolution , the raw material in barrel analysis and combination with different potential energy. The raw material spread mixing alternately , with the time go on , the raw material will mixed very well.
Main features:
1. The powder or granule material is fed into the double cone container through the vacuum feeder or manually. The double cone container is rotating continuously to create the compound crushing motion until the material is mixed uniformly.
2. Energy saving, easy for operation, low labor cost, and high efficiency.
3. Mirror polished of inner and outer shell to meet GMP standard.
4. No blind angle, no accumulation of materials, high speed.
5. Rotating valve is equipped for discharging
6. Fully integrated motors and controls.
7. Can work with vacuum feeding system to create dust-free working condition.
8. Intensifier bars can be equipped for deagglomeration.
9. Safety railings can be equipped for protection.
Our company:
We Brightsail Machinery are engaged in manufacturing a wide range of mixers, double cone mixer, v shape mixer, etc. Our machine can be used in food plant plant and chemical plant for powder mixing. And we provide customization service for our clients to meet various requirements. Within years, we have exported machines to more than 50 countries and won the good repuation from our customers.
Hope to build a big picture with you in the future.
Technical data:
|
Model
|
BSW-180
|
BSW-300
|
BSW-500
|
BSW-1000
|
BSW-1500
|
BSW-2000
|
BSW-2500
|
BSW-3000
|
BSW-4000
|
|
Full volume(m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
|
Mixing time(min)
|
4-8
|
6-10
|
6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
|
Mixing speed(rpm)
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
7.8
|
7.8
|
|
Power(kw)
|
1.1
|
1.1
|
2.2
|
4
|
4
|
7.5
|
7.5
|
7.5
|
11
|
|
Gross rotation
height(mm)
|
1850
|
1850
|
1950
|
2460
|
2540
|
3650 |
3650
|
3700
|
3730
|
|
Weight(kg)
|
280
|
310
|
550
|
810
|
980
|
2150
|
2150
|
2500
|
3200
|
