Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | flour blending machine,plantain grinder machine |
||

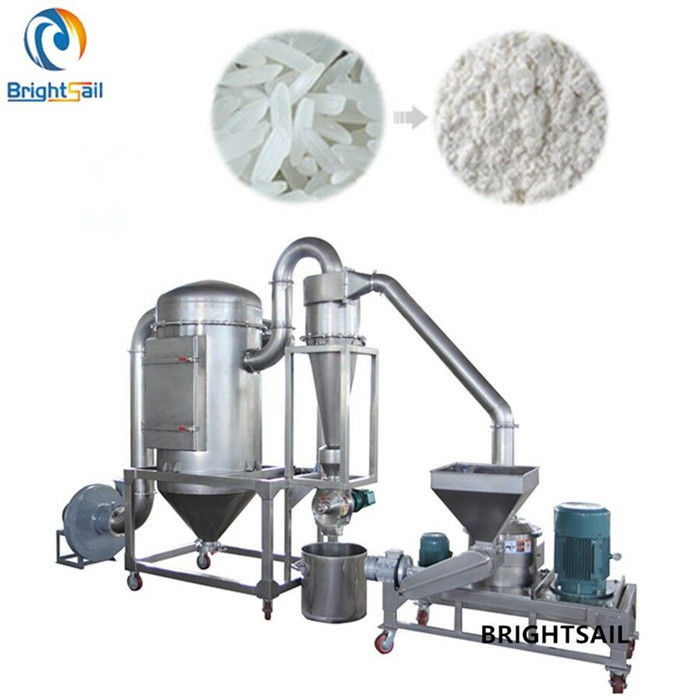

Industry grain powder milling machine rice husk oat bran flour mill grinder
BSP ultra-fine pulverizer is our best selling pulverizer set, which has many advantages that common pulverizer don't have. It can be used in chemical, foodstuff, pharmacy and other industries for powder making.
It is a superfine pulverizer consisting of three parts: main engine, auxiliary machine and electric control box. It has various characteristics such as air-selection, no screen, no net, uniform size and so on. And the production process is continuous and extensive.
Working method:
The raw materials enter the crushing chamber through screw feed, and are cut and sheared by high-speed cutters and eddy currents generated by high-frequency vibration. Due to the effect of negative pressure, the crushed powder enters the common wheel, and through the rotation of the stage wheel and the centrifugal force of the air knife, the powder larger than the stage particle size is returned to the crushing chamber, and the qualified powder enters the pipe for discharge.
Main features:
1. Compact design
2. Reasonable structure, with fan system, non screen.
3. Ultrafine grinding machine are made of high quality stainless steel. The device is equipped with a classification mechanism, it can make a complete crushing, grading in one time.
4. The grading wheel of this type pulverizer install frequency conversion motor, easy to adjust the speed
5. This machine is suitable for a wide range, continuous production process, the size can be adjustable.
Our service:
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
a. Before sending the machine, we will test and adjust, so you can use directly when you get it.
b. Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
a. Any problems occur while using, professional advice will be offered.
b. All kinds of frequently used parts are supplied all the year round.
c. 24hs online service support
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
