Product Details:
|
| Product Name: | V Shape Powder Mixer Blender Flour Mixing Blending Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 50-5000L |
| Warranty: | One Year | Mixing Time: | 4-10 Min |
| Power: | 1.1-11kw | Voltage: | Customized |
| High Light: | pin mill grinding machine,plantain grinder machine |
||

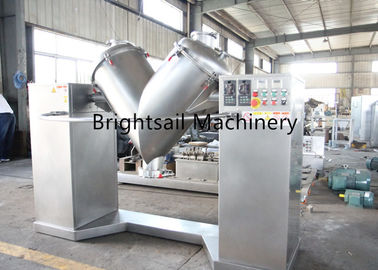

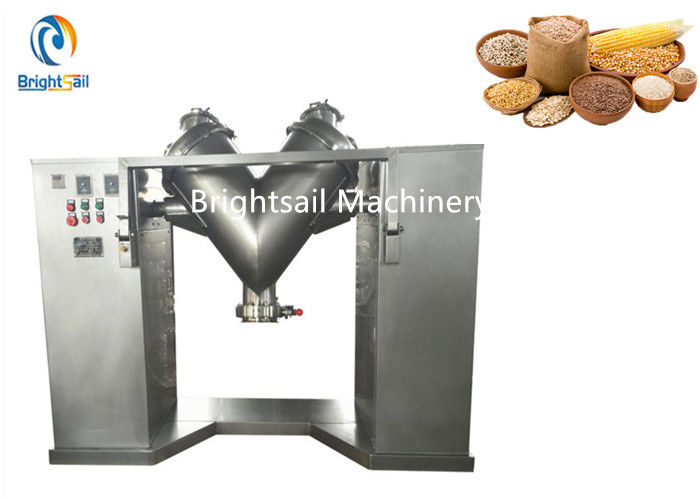

Animal food grain powder mixer machine wheat oat bran rice flour blender machine
BSV powder mixing machine is used to mix dry powder or granules for pharmacy,food,chemical and other relative industries. This machine has a good mix effect for protein powder, coffee powder, detergent powder...etc.
It is the distinguishing feature and the mixing ability is well-proportioned and efficient with no blindspots in the cylinders and no accumulation of materials.This machine is straightforward and it is easy to operate on a surface that is easy to clean in a highly finished stainless steel.
Working method:
Because the cylinder adopts a V-shaped structure and a fixed stirring device is designed inside the cylinder, during the rotation of the mixer, the material rolls 360 ° inside the cylinder, and then the relative motion of the fixed cylinder and the mixing cylinder is used to make the The material plays the role of forced tumbling, thereby improving the better mixing effect for some materials with poor fluidity.
Main features:
1. Smooth polishing inside and outside.
2. No dead corner, meets the USDA standard.
3. Structure is simple, operation and maintenance is easy.
4. High mixing efficiency, wide application.
5. Easy loading and discharging.
6. The forced mixing function can be setted according to customer's requiremet.
Packing and shipping:
*About goods shipping:
We have long-term cooperation with shipping company and shipping forwarder.
We can do our best to send machine to your port safe and sound.
If your need , we can help you do custom clearance.
* Packaging Details:
1. Outside package: Standard export wooden cases.
2. Inner package: wrapping film.
3. For big machine, using steel wires and nail to fix the machine inside container.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
