Product Details:
|
| Product Name: | Food Powder Grinder Pin Mill Pulverizer Grinding Milling Machine | Material: | SS 304/316 |
|---|---|---|---|
| Application: | Food, Chemical, Medical,etc | Capacity: | 50-1000 Kg/h |
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| Voltage: | Customized | Warranty: | One Year |
| High Light: | pin mill grinding machine,flour blending machine |
||
Mustard seeds spice powder making machine turmeric pin mill grinding machine

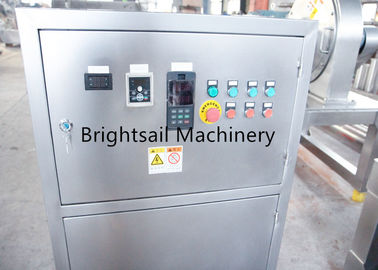

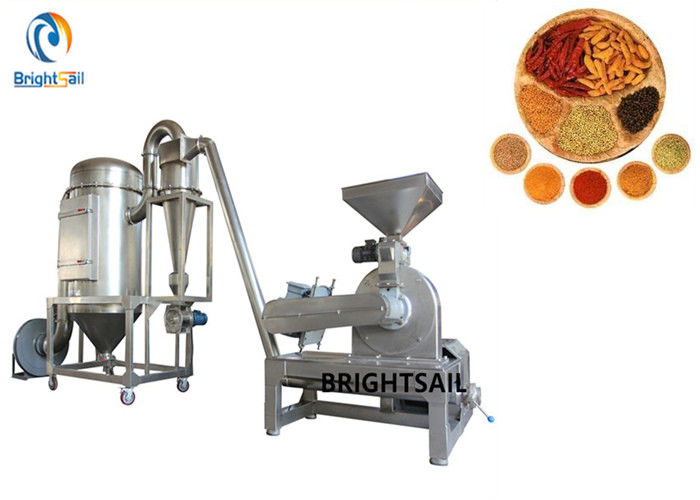

BSZ pin mill machine consists of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Main features:
1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material crushing process is fast and reliable, final size is adjustable.
4. It is not affected by material viscosity, hardness, softness and fiber etc.
Working method:
The machine is crushed by reverse rotation of front and rear grinding wheels,which can improve the grinding effect.The needle bars with different diameters are installed on the double discs. Each part arranges the needle bars by three-dimensional simulation technology, and designs the layout reasonably, so that the material can be effectively controlled in the gap between the needle bars to achieve effective segmentation effect. It does not have screen mesh in the mill chamber, changing powder size by changing speed of mill wheel, materials can also be classified by external grading methods.
Packing and shipping:
About shipping:
We have long-term cooperation with shipping company and shipping forwarder.
We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging details:
1. Outside package: Standard export wooden cases.
Inner package: wrapping film.
2. For big machine, using steel wires and nail to fix the machine inside container
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
