Product Details:
|
| Product Name: | Grain Powder Making Grinding Flour Milling Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Application: | Food,chemical,medicine,etc | Capacity: | 50-5000 Kg/h |
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| High Light: | pin mill grinding machine,plantain grinder machine |
||

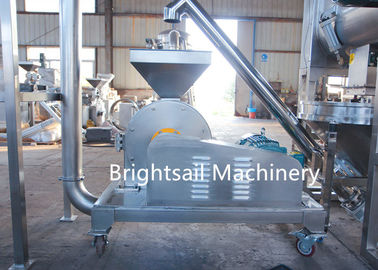

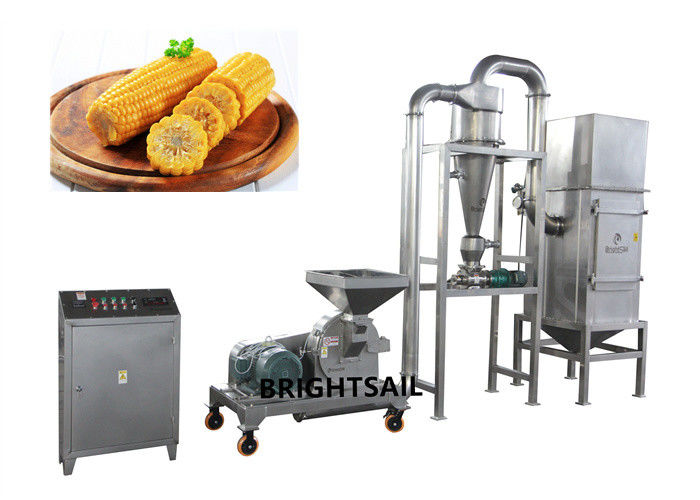

Industry grain powder milling machine dry maize corn flour pulverizer machine
Our BSG self-absorb grinding set is a kind of high effcient mill designed and developed by my company, which can grind most materials. In foodstuff fields: it can grind rice, salt, sugar, leaf, garlic, pepper, cassava, chickpea...etc. It can also be applied in chemical, pharmaceutical and other industries. So it is also called universal mill unit.
Working method:
It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials. Since it features a simple structure, firm and stable operation and good crushing effect, the crushed materials can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.
Main Features:
1 Material,usually material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button;Easy to clean,usually use water cooling or air compressor is ok .
3 Final powder size range from 10mesh -120 mesh,we have screener like 10mesh,20mesh,30mesh,40mesh,60mesh,80mesh,100mesh,120 mesh for your choose.
4 Water cooling system for your choice.
Our company:
Brightsail Machinery is specialized in design, development, manufacture and sale of pharmaceutical, chemical and food machinery. Our products include pulverizer, mixer, dryer, packing machine, conveyor, etc.
The unexcelled quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.
Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery. Our products are far sold to more than 50 countries, and they are well received by customers both at home and abroad.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
