Product Details:
|
| Product Name: | Grain Powder Making Grinding Flour Milling Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Application: | Food,chemical,medicine,etc | Capacity: | 50-5000 Kg/h |
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| High Light: | pin mill grinding machine,plantain grinder machine |
||
10 to 120 mesh grain powder making machine rice husk wheat bran pulverizer
Our BSG self-absorb grinding set is a multifunctional powder grinder. It can grind powder at 10-120mesh. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, corn, wheat, cassava, yam, chickpea, etc.
Working method:

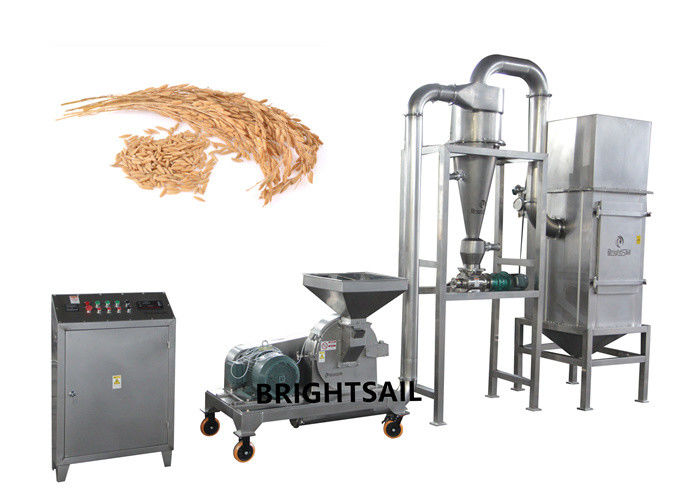

This machine is made up of crusher, cyclone separator, pulse dustevacuator box and blower fan etc. By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.
Main Features:
1. This grinding machine is widely used in food, chemical and pharmaceutical industry.
2. For normal material, it can grind into 10-120 mesh.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-200 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. No fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
Our service:
A. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in & after the warranty time.
4. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. One year’s warranty, and you can pay for extended warranty.
3. Spare parts and technical support at most economic prices after the warranty.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
