Product Details:
|
| Product Name: | Tea Bag Making Small Dry Flower Powder Tea Leaf Flakes Crushing Grinder Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Capacity: | 3-300kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | SS 304/316 | Voltage: | 220-480 V |
| Highlight: | 300kg/h powder grinding machine,Tea Leaf Flakes Crusher Machine |
||

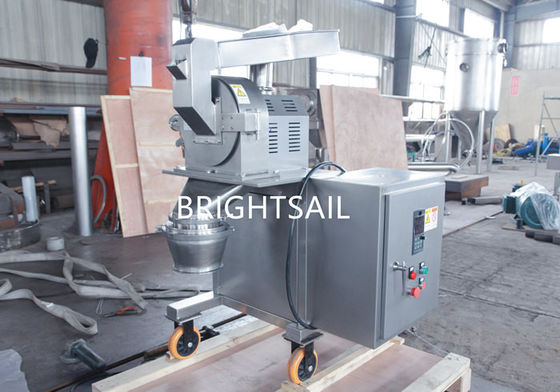

Tea bag making small dry flower powder tea leaf flakes crushing grinder machine
Our BS high speed hammer grinder is a mill whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. It has numerous industrial applications, like for grinding herbs, grain, spices, dry leaves and so on. Its knife can be selected according to different materials and size of granules.
Crusher part:
Working method:
A hammer mill is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.
Main features:
1. Simple structrue.
2. High speed, which can make finer powder than common hammer grinder.
3. Stainless steel 304, which is food grade material.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
