Product Details:
|
| Product Name: | Laboratory Use 80 Mesh Fine Flour Making Dry Chickpea Powder Grinder Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10mm |
| Material: | SS 304/316 | Voltage: | 220-480 V |
| High Light: | Dry Chickpea Powder Grinder Machine,chickpeas grinding machine |
||

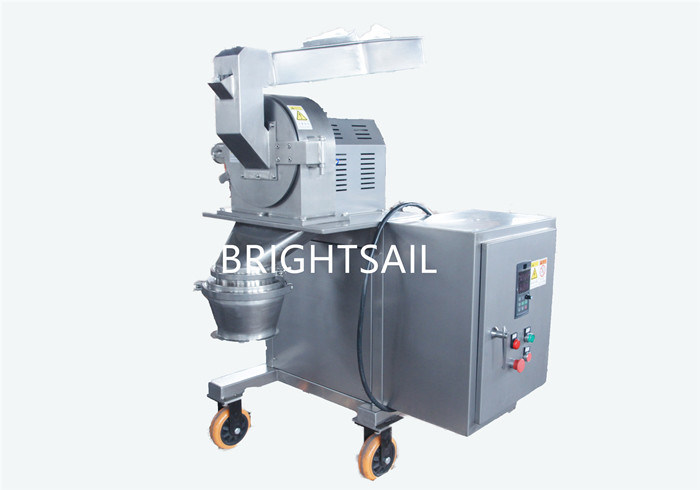

Laboratory use 80 mesh fine flour making dry chickpea powder grinder machine
Our BS high speed hammer mill is suitable for grinding dried herbal products, different kinds of spice without high oil content, other food and chemical products. Compared with other common hammer grinders, the biggest difference is that its rotor speed is higher, so this grinder can make finer particle size. It also can be used to make flakes or granules if using knife type as the mill part.
Work method:
Feeding the materials into the grinder by way of the hopper, it will be crushed by the hammer knives inside. Then the powder or granules, flakes will be discharged out due to the centrifugal force. If the particle size is small or big for you, you could change the screen mesh to adjust the fineness.
Main features:
1. Small size and machine structure is simple.
2. Small power and low cost.
3. Can make powder and granules or flakes.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Applications
