11kw 75kw Ultrafine Powder Grinder Machine

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

11kw 75kw Ultrafine Powder Grinder Machine

11kw 75kw Ultrafine Powder Grinder Machine
11kw 75kw Ultrafine Powder Grinder Machine
11kw 75kw Ultrafine Powder Grinder Machine 11kw 75kw Ultrafine Powder Grinder Machine

Large Image :  11kw 75kw Ultrafine Powder Grinder Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSP
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

11kw 75kw Ultrafine Powder Grinder Machine

Description
Product Name: Ultrafine Seaweed Powder Grinder Application: Food,chemical,pharmaceutical,etc
Material: SS 304/316 Capacity: 20-1800 Kg/h
Input Size: <15 Mm Fineness: 60-2500 Mesh
Crusher Motor: 11-75 Kw Voltage: Customized
High Light:

Ultrafine Powder Grinder Machine

,

11kw Powder Grinder Machine

,

75kw Powder Grinder Machine

11-75 kw Ultrafine powder grinder seaweed crusher electric grinder

BSP ultra-fine pulverizer is made up of crusher, cyclone, dust collector, blower and electric control box with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.



Working method:

Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.



Main components:

1. Pulse Dust Collecting box:dust is collected inside the dust collecting box.Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.With pulse-jet cleaning, dust can be collected very conviniently.

2. Crusher part:The left motor is crush motor,and the right motor is classfifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.
3. Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber.
4.Cyclone part:cyclone can seperate dust from powder(granules).Rotary valve make powder discharge speed even,and is also made of stainless steel.It is convinent to clean and dismantle.



Main features:

1) No need to screen, change the speed to change the particle size.
2) There is a water cooling jacket around the grinding chamber, and the bearing can cool the machine.
3) Motors, electrical appliances, bearings, and operating parts adopt the world's advanced products, and the quality is guaranteed.
4) There is no dust during the production process, and the dust can be collected in the dust removal box.
5)
Simple structure, easy to install and maintain.





Detailed Images:

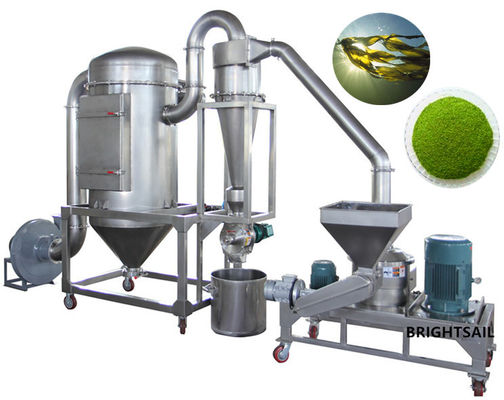

11kw 75kw Ultrafine Powder Grinder Machine 0











Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed  motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100
