Product Details:
|
| Product Name: | Teff Ultrafine Pulverizer | Type: | Micro Grinder |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Warranty: | 1 Year | Application: | Food,chemical,pharmaceutical,etc |
| High Light: | Teff Ultrafine Pulverizer,20kg/h Ultrafine Pulverizer,ultrafine teff pulverizer |
||
20-1800 kg/h Teff Ultrafine Pulverizer Micro Grinder
Product Description:

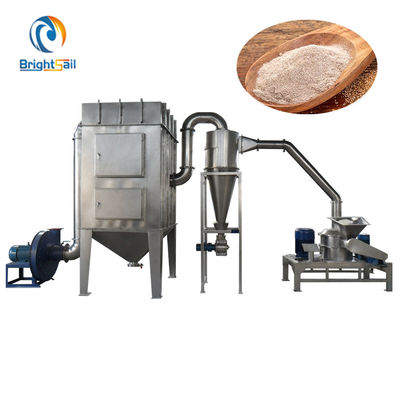

Teff flour making machine is made up of three parts:main machine,auxiliary machine and electric control box. Teff ultrafine crusher has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.
The production process going on continuously,the machine can undertake the grinding of chemical products.food medcine,medicament,cosmetics,plastic,dyestuff, resin,grain,etc.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3)No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
4) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Detailed Images:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
If you want to send inquriy to me about our machine,could you please tell me?
1.What material do you need to mix?Do you know the density of it?
2.What capacity you expect?
3.What voltage you want?For example ,380V 50hz 3p......
4.What material of the equipment you want?usually wo adoopt stainless steel 304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316 parts SS304
5.Do you need a jicket around the mixer for cooling or heating?
