Product Details:
|
| Usage: | Spice Grinding | Procyct Name: | Spice Grinding Machine |
|---|---|---|---|
| Material: | Stainless Steel, SS304 | Warranty: | 1Year |
| Weight: | Customized | Certification: | CE ISO |
| Marketing Type: | Hot Product 2021 | Capacity: | Customized |
| High Light: | spice chili powder grinding machine,200mesh chili powder grinding machine,12mesh spice chili powder grinding machine |
||

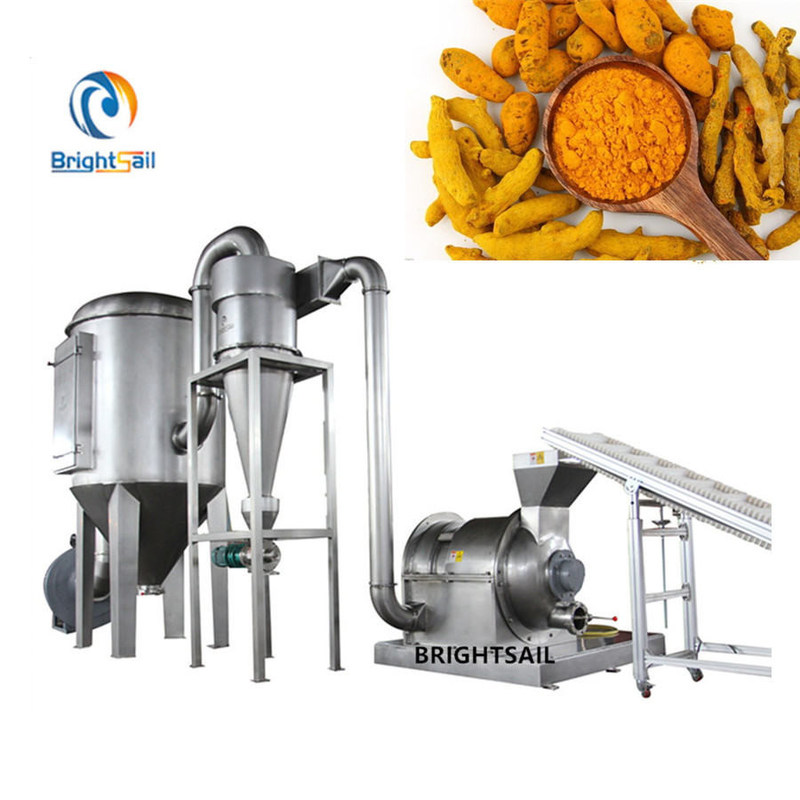

Industrial Use 12 ~ 200 Mesh Spice Chili Grinding Machine Spice Powder Grinder Machine
Our company have many different types of spice grinder machine,this three types below are typical,they have different They are very different in capacity, material selection, material fineness.
| Machine | BSDF advanced hammer mill | BSP Ultrafine grinding machine | BS small hammer mill |
| Appearance |  |
|
|
|
Simple introduction |
BSDF can make finer powder than traditional hammer mill because of its totally different structure,it combines coarse crusher,middle fine milling and fine milling together, which means material can be milled three times in a very short time, almost at the same time.It is suitable for most spices,can be ground to 20-60 mesh fineness. |
BSP grinding machine is suitable for grinding spices with low oil content. Spices can be ground to 40-200 mesh fineness |
BS hammer mill is suitable for small volum production.Knife of type can be selected according to different material and size of granules. |
| Ingredient | mill part, cyclone, dust collecting box, blower and electrical control box. | three parts:main machine,auxiliary machine and electric control box. | three parts: frame, mill room and feeding part. |
| Working Method | From right to left,they are coarse crush area,middle fine mill area and fine milling area and blast area.Material fed in will be milled by the three areas to become fine powder directly. Change powder size by changing speed. |
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. | When the spindle works at high speed, the movable tool head runs together. The material is impacted, frictioned and cut by fixed ring and movable hammer. Material also collides with each other. In the combined effect, they are crushed into powder. Type of knife can be selected according to different materials. |
| Features |
1. No need to change the particle size of the powder by changing the speed of screen or screen. 2.Because there is no screen in the grinding chamber, there is no heat rise in the grinding chamber when grinding. 3.The mill part is composed of coarse grinder, medium fine grinder and fine grinder, which can directly extract fine powder from large raw materials. 4.You can save more power. |
1.Simple structure, easy installation and maintenance. 2.No dust in the production process, dust can be collected in the dust collection box. 3.Do not need screen, can change the particle size by changing speed; Particle sizes range from 80 to 500 mesh. 4.There are water-cooled jackets around the grinding chamber and bearings to cool the machine. |
1) Simple structure, stable operation, easy installation and maintenance. 2) Pneumatic components, electrical components, operating components are all adopted world famous brands. 3. The contact part of the grinding machine is made of stainless steel, which has good corrosion resistance. |
|
If your spice crush yield requirements are small,you can choose BS small hammer mill. If your spice crush yield requirements are large,and a fineness about 20-60 mesh,you can choose BSDF advanced hammer mill. If the oil content of the material is not high, and you have high requirements for the fineness of the finished powder,youcan choose BSP ultrafine grinding machine. |
|||
Detailed Pictures And Technical Data Of This Three Machines:
Customer feedback:
Our Company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as roasting machine,50kg cacao roasting machine, chemical powder mixer machine, detergent powder mixing machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
