Product Details:
|
| Product Name: | Food Powder Grinder Pin Mill Pulverizer Grinding Milling Machine | Material: | SS 304/316 |
|---|---|---|---|
| Application: | Food, Chemical, Medical,etc | Capacity: | 50-1000 Kg/h |
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| Voltage: | Customized | Warranty: | One Year |
| Other Name: | Coco Bean Milling Machine | Weight: | Customized |
| High Light: | 1000kg/h cocoa bean grinder machine,50kg/h cocoa bean grinder machine,40mesh cocoa bean grinder machine |
||

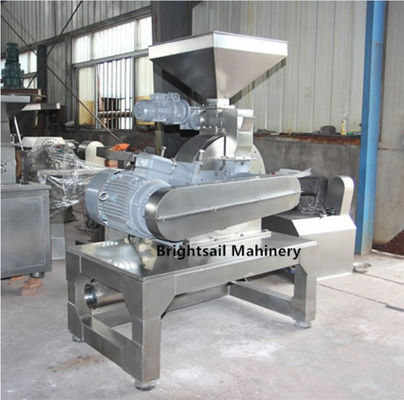

40-1000 mesh 50-1000 kg/h Cocoa Bean Powder Grinder Machine
Specialized in milling for various fruit,walnuts,coffee beans,cocoa beans,peanuts,rice and other food and chemical raw material.
Introduction:
Agricultural products of oil and fat and special milling machine of chemical raw material import foreign technology, developing constantly through many years of practice. This product conforms to the standard of food hygiene and has easy operation and low noise, it is useful for enterprises to process various food and chemical materials. This series has two types of bidirectional wheel grinding and unidirectional wheel grinding and their model sizes are 400/300.
Technical Data
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-200 | 40-200 | 40-200 |
| cavity disc crush motor(kw) | 15 | 22 | 30 |
| feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) No need screen in grind chamber, change powder size by changing speed.
4) Can make very fine powder
Application:
1.Work method:Bidirectional pair wheels adopt the way of reverse rotation of front and back grinding wheels, thus this way improves the crushing effect.
2.Cyclone part:
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient.
3.pulse dust collecting box:
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.
Company information:
We Brightsail Machinery are manufacturer of various grinders, BS series, BSP series, BSZ series and BSP series etc with different features. They can be used to grind many dry food or chemical or pharmaceutical materials into powder. Customization service for our clients to meet various requirements.
