Product Details:
|
| Product Name: | Rice Husk Powder Grinder Machine | Material: | SS 304/316 |
|---|---|---|---|
| Application: | Food, Chemical, Medical,etc | Capacity: | 60-700kg/h |
| Fineness: | 40-1000 Mesh | Speed: | 1200~8400rpm |
| Other Name: | Corn Rice Husk Hammer Mill | Advantage: | Fast Grinding Speed |
| High Light: | 700kg/h powder grinder machine,ss304 powder grinder machine,rice husk grinding machine gmp |
||

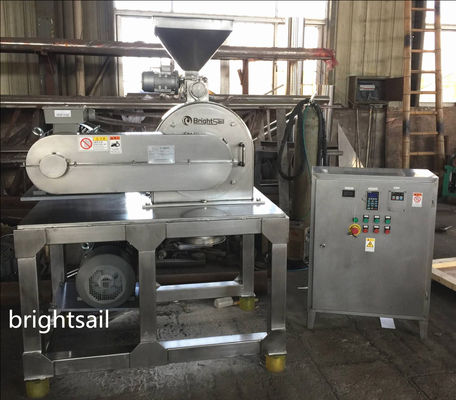

60 To 700kg Per Hour Capacity 40 To 200mesh Fineness Rice Husk Powder Grinder Machine
Introduction:rice husk powder grinder machine
This oats milling machine is suitable for all kinds of food and chemical production and processing enterprises. It has two-way grinding wheel grinding and one-way grinding wheel grinding. There is no need for a screen in the grinding chamber. If you want to change the powder size, you only need to change the speed through the frequency converter.
This oats machine conforms to the standard of food hygiene and has easy operation and low noise.This series has two types of bidirectional wheel grinding and unidirectional wheel grinding and their model sizes are 400/300.Specialized in milling for various fruit,walnuts,coffee beans,cocoa beans,peanuts,rice and other food and chemical raw material.
Technical data:rice husk powder grinder machine
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
Main features:rice husk powder grinder machine
(1) Simple structure in linear type ,easy in installation and maintation.
(2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
(3) No need screen in grind chamber, change powder size by changing speed.
(4) Can make very fine powder.
Principle:rice husk grinding machine
The two-way counter wheel adopts the way that the front and rear grinding wheels rotate reversely, which improves the grinding effect. The needle cylinders with different diameters are installed on the double disk, and the needle rods are arranged through the three-dimensional simulation technology, and the reasonable layout is designed, so as to control the material and effectively achieve the effective splitting effect in the needle rod gap. The needle bar can adopt the shape of hexagonal wolf tooth according to the crushing material. Wolf tooth shape is called corncob roller mill. This rice husk hammer mill has special effect on engineering plastics with high melting point at room temperature and flour. The needle bar mill adopts the screw quantitative feeding mode to control the uniform movement of materials in the grinding plate. There are two discharge modes: natural state output and negative pressure discharge. There is no screen in the grinding wheel cavity of the machine. The fineness of Crocus can be adjusted by the linear speed of the grinding wheel. The material can also be classified by external classification method.
Crushing effect:rice husk powder grinder machine
