Product Details:
|
| Product Name: | Rice Hull Powder Machinery | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Speed Of Principle Axia: | -6500~-3100rpm |
| Blower: | 7.5-37kw | Crusher Motor: | 11-75 Kw |
| Other Name: | Rice Husk Crush Machine | Warranty: | 1year |
| High Light: | ss316 powder grinder machine,GMP powder grinder machine,ss316 ultra fine powder grinder |
||
60 To 2500mesh Fineness For Super Fine Powder Making Rice Hull Powder Machinery
Introduction:rice hull powder machinery
BSP oats processing machine is suitable for crushing chemical products, food raw materials, seaweed raw materials, medicine, cosmetics, dyes, resins, fabrics and other materials, reaching the international advanced level. It has good crushing effect on rice, sugar, salt, beans, medicinal materials, roots, coconut shells, cassava, plantain, yam and so on.
Technical data:rice hull powder machinery
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:rice hull powder machinery
The material delivers by the feeding engine to the crushing cavity, and is loaded with by the high speed revolving unit rubs the tooth the stator impact, cutting, the attrition.Rubs in the impact divides the step pulley and under the air blower centrifugal force function, the powder material enters the graduation area, the powder material is qualified.The unnecessary dust continues through the cyclone separator and the cloth sack dust remover to crush.
Main features:rice hull powder machinery
1. Alloy Steel Hammer and Rotor
2. GMP and food grade design
3. Adverse working conditions can prevent dust, suitable for crushing heat-sensitive materials.
4. The output dimension can be adjusted by air classifier and air flow.
5.Automatic control of feed rate.
6.The particle size distribution can be precisely controlled
(This is BSP was assembled at a customer's factory in Poland)
Grinding effect:rice hull powder machinery

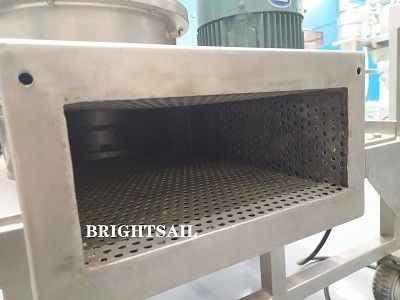

Detailed image:rice hull powder machinery
Contact us,we can give you the most appropriate advice
