Product Details:
|
Product Name: | Liquorice Powder Making Machine | Input Size: | <15mm |
---|---|---|---|
Capacity: | 20-1800 Kg/h | Finished Product: | Konjac Powder |
Fineness: | 60-2500 Mesh | Advantage: | Superfine Powder Making |
Other Name: | Liquorice Machine | Other Name: | Liquorice Grinding Machine |
Highlight: | liquorice powder grinder machine,60 mesh powder grinder machine,15mm powder grinding machine for liquorice |
60 Mesh Powder Fineness 20 To 1800kg Per Hr Capacity Liquorice Powder Making Machine
Product introduction:liquorice powder making machine
BSP liquorice mill machine (air classifier) is a kind of crusher that can produce very fine powder. It is used for crushing sugar, and the output can reach 60 ~ 1000 mesh. Used for grinding dried ginger and turmeric. This type can also be ground into very fine powder. Moreover, the pulverizer can produce very uniform powder, and the distribution of powder is also very uniform.
Technical data:liquorice powder making machine
Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
Input size(mm) | <15 | <15 | <15 | <15 |
Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
Crush motor(kw) | 11 | 18.5 | 30 | 55 |
Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
Blower(kw) | 7.5 | 11 | 18.5 | 37 |
Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:liquorice powder making machine
The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring. When the grading wheel rotates, air and centrifugal force act on the powder at the same time. The particles with particle size larger than the critical diameter (graded particle size) have greater mass and are thrown back to the grinding chamber for crushing again. Particles with particle size less than the critical diameter enter the cyclone separator and dust box.
Advantages:liquorice powder making machine
1. Compact design and reasonable structure. There is a grading mechanism inside the material, which can carry out grinding and grading at the same time to reduce energy consumption.
2. The machine is equipped with a fan for continuous heat dissipation, which is suitable for grinding heat sensitive materials.
3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Under the condition of no shutdown, the uniform distribution of product particle size can be realized by adjusting the rotating speed or air classifier.
5. The upper cover of the main engine is opened by the pneumatic spring. The main structure can be opened on both sides to make the cleaning and maintenance of internal parts accessible.
6. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.
Grinding effect:liquorice powder making machine

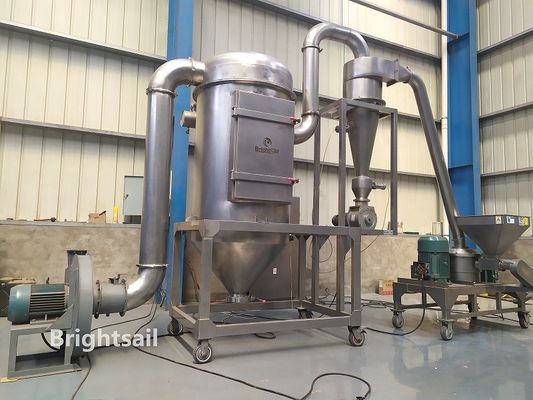

Detailed images:liquorice powder making machine
