Product Details:
|
| Product Name: | Kenaf Core Grinder | Input Size: | <15mm |
|---|---|---|---|
| Capacity: | 20-1800kg/h | Finished Product: | Kenaf Core Powder |
| Fineness: | 60-2500 Mesh | Blower(kw): | 7.5-37 |
| Other Name: | Kenaf Core Mill | Other Name: | Kenaf Core Crusher |
| High Light: | kenaf core ultra fine powder grinder,1800kg/h ultra fine powder grinder,1800kg/h fine powder grinder |
||
20 To 1800kg Per Hr Capacity 60 To 2500mesh Powder Fineness Kenaf Core Grinder
Product introduction:kenaf core grinder
BSP kenaf core mill (air separator) is a kind of crusher that can produce abnormal fine dust. For granulated sugar, the output can reach 60 ~ 1000 pieces. Used for grinding dried ginger and turmeric. This type can also be ground into very thin powder. Moreover, the pulverizer can produce very uniform powder, and the powder distribution is also very uniform.
Technical data:kenaf core grinder
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:kenaf core grinder
The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring. When the grading wheel rotates, air and centrifugal force act on the powder at the same time. The particles with particle size larger than the critical diameter (graded particle size) have greater mass and are thrown back to the grinding chamber for crushing again. Particles with particle size less than the critical diameter enter the cyclone separator and dust removal box.
Advantages:kenaf core grinder
1. Designs compact, the structure is reasonable.The material interior is equipped with the indexing organization, may simultaneously carry on the friction and the indexing, reduces the energy consumption.
2. This machine is equipped with the ventilator to radiate continuously, is suitable for the heat-sensitivity material grinding.
3. accommodating, the grain-size distribution is narrow.The product granularity is even, degree of fineness may reach 80-320 item.
4. In the tailoff situation, is possibly unable through the adjustment rotational speed or the air separator realizes the product granularity uniform distribution.
5. The main engine opens head by the air operated spring.The main body structure may bidirectional opening, be advantageous to the internal part clean and the maintenance.
6. The main attrition uses the upscale alloy tool steel, lengthened the attrition service life greatly or replaces the cycle.
7. The bearing system uses the import high speed precision bearing, the movement is steady, the vibration, the noise are low.
8. This pipeline has the rapid take-down structure, is advantageous for the disassemblage and the clean.

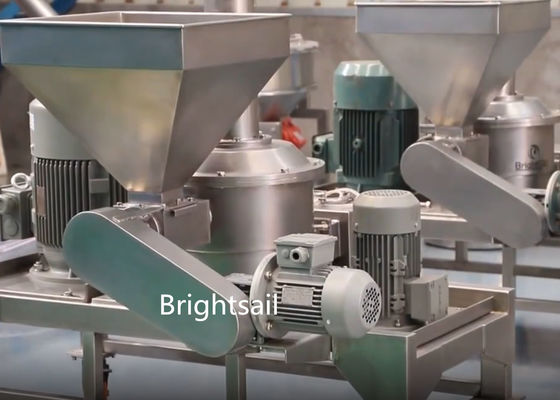

Detailed images:kenaf core grinder
How Can I Buy This Machine?
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
