Product Details:
|
| Product Name: | Whey Protein Flour Ribbon Mixer | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Power: | 3-90kw | Applicable Materials: | Dry Powder,granules |
| Material: | SUS304,SUS 316,carbon Steel | Volume: | 50-20000L |
| Other Name: | Whey Protein Powder Blender Machine | Another Name: | Whey Protein Powder Mixing Machine |
| High Light: | grain powder machine 60l,grain powder machine 12000l,90kw ribbon blender machine |
||
Food Mixing Machine 60 To 12000L Max Work Volume Whey Protein Flour Ribbon Mixer

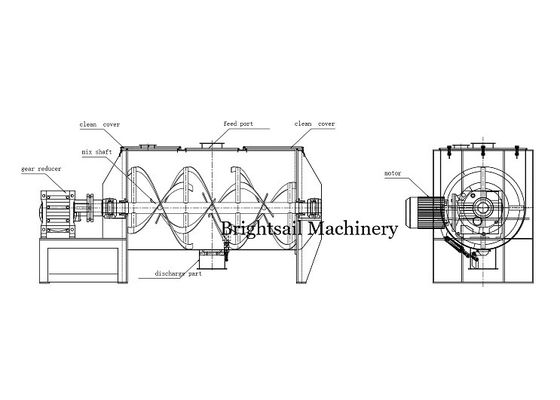

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It has a very good effect for mixing powder, or mixing powder with liquid.
Technical data:whey protein flour ribbon mixer
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
Working method:whey protein flour ribbon mixer
The patented technology of the utility model drives the materials in the barrel to rotate through the inner diameter and outer diameter screws installed on the mixing shaft, so that the mixer can rotate the animals in the barrel to the greatest extent. In the agitator structure, the spiral is designed as an internal and external reverse spiral, left to right reverse spiral. When the agitator works, the inner screw carries animal materials to rotate near the axial shaft and push both sides of the axial shaft. Axial rotation generates axial thrust from both sides, so that the materials are convective, shear and mixed in the pipe, and the materials are quickly and evenly mixed in a short time.
1. The U-shaped long cylinder structure ensures that the movement resistance of mixed materials (powder and semi fluid) in the cylinder is small.
2. The positive and negative rotating screws are installed on the same horizontal axis to form a mixed environment with low power and high efficiency. Ribbon blades are usually made into two or three layers. The outer helix gathers the materials on both sides to the center and inner layer. Spirals move matter from the center to both sides, creating more turbulence in the flow. Speed up the mixing speed and improve the mixing uniformity;
3. Bottom discharge mode of belt mixer: pneumatic large opening structure for powdery materials, which has the advantages of fast discharge and no slag;
4. For high-precision materials or semi fluid materials, manual butterfly valves are pneumatic butterfly valves. Economic application of manual butterfly valve. Pneumatic butterfly valve has good sealing performance for semi fluid, but the cost is higher than that of manual butterfly valve. Jackets can be configured where heating or cooling is required.

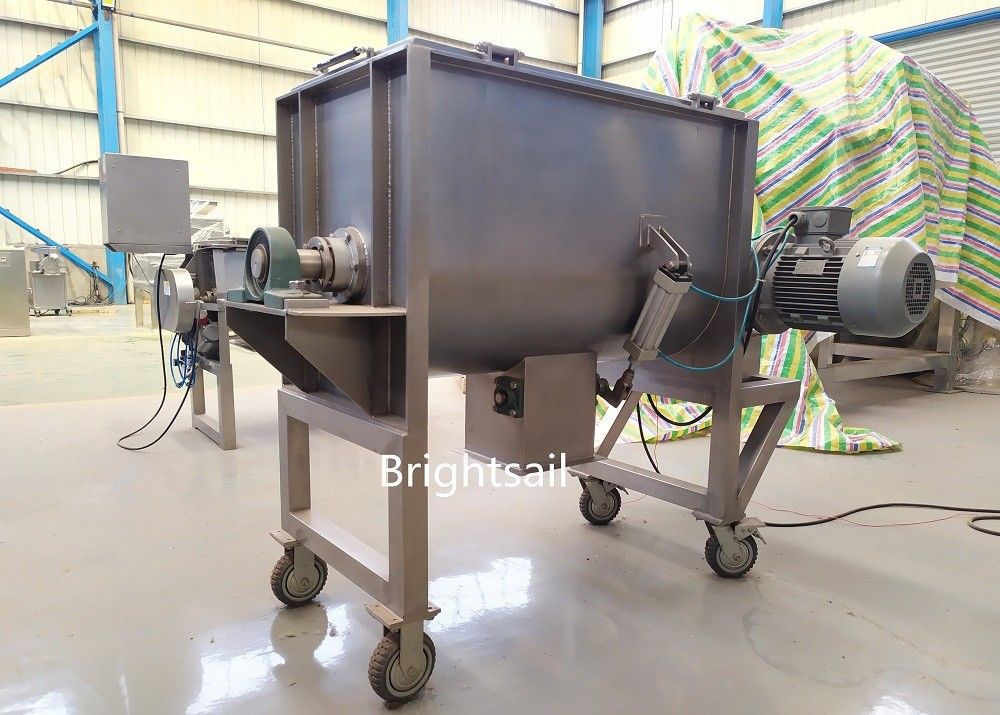

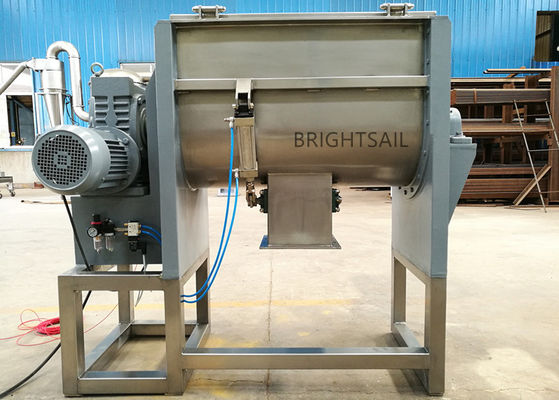

Detailed Images:whey protein flour ribbon mixer
Why choose us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
