Product Details:
|
| Product Name: | Coffee Grinder Automatic | Application: | Foodstuff Industry,chemical Industry,medical Industry... |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 60-700kg/hr |
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| After-sales Services: | Provided | Pre-sales Services: | Provided |
| Highlight: | double grinding discs powder grinder machine,1000 mesh fineness powder grinder machine,40 mesh fineness powder grinding machine |
||
Double Grinding Discs 40 To 1000 Mesh Powder Fineness Coffee Grinder Automatic
Product Introduction:
BSZ Pin mill can be used in food, pharmaceutical, chemical and other industries, mainly for grinding. For high oil content materials, such as coffee beans, caraway seeds, this type can also have a good grinding effect.
In the production of fruit powder, liquid nitrogen is needed to control the temperature of the grinding chamber so as to keep the yield of fruit powder in good condition. For Eggshells, this kind of needle mill is also suitable.
This product conforms to the food safety standard, easy to operate, low noise. There are two types of grinding wheel grinding and one-way grinding wheel grinding.
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
Working method:
The machine adopts a quantitative feeding method to control the uniform movement of materials in the grinding block. Unloading adopts negative pressure traction method. This machine has no screen, and the fineness of the abrasive can be adjusted by the speed of the grinding wheel. It can also be classified by external classification.

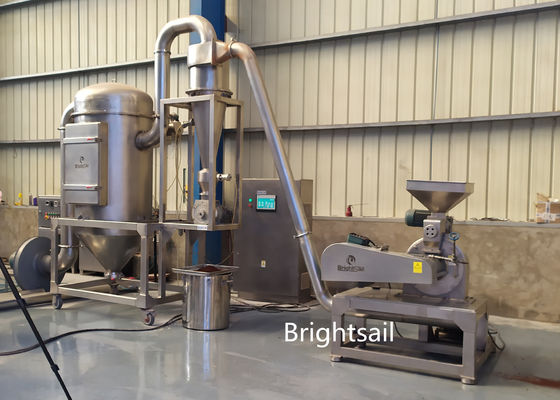

Main components:
1. Pulverizer: there are 2 grinding plates, which are faster and finer than ordinary pulverizers.
2. Cyclone separator: it can separate the dust in powder (particle).
3. Pulse dust collector: remove dust inside the dust collector.
Main features:
1) High speed, up to 12000rpm
2) There is no need for sieve chamber or sieve holes, and the size of the powder can be changed by changing the rotation speed.
3) Very suitable for some materials with high oil content, such as cocoa, coffee beans, etc.
If you want to send inquriy to me about our machine,could you please tell me?
1.What material do you need to grind?What powder fineness do you want?
2.What capacity you expect?
3.What voltage you want?For example ,380V 50hz 3p......
4.What material of the equipment you want?usually wo adoopt stainless steel 304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316 parts SS304
