Product Details:
|
| Product Name: | Herb Powder Making Machine | Application: | Herb,rice,leaf |
|---|---|---|---|
| Material: | SS304/316 | Capacity: | 20-1800kg/h |
| Speed Of Principle Axia(rpm): | -3100~-6500 | Fineness: | 600-2500 Mesh |
| Voltage: | Customized | Other Name: | Aair Classifier Mill |
| High Light: | ss304 air classifier mill,2500 mesh fineness air classifier mill,iso passed herbal powder machine |
||

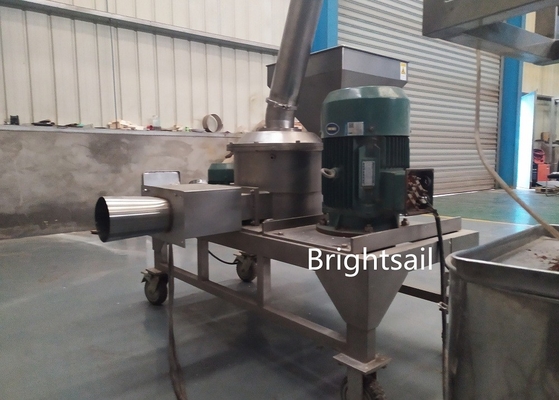

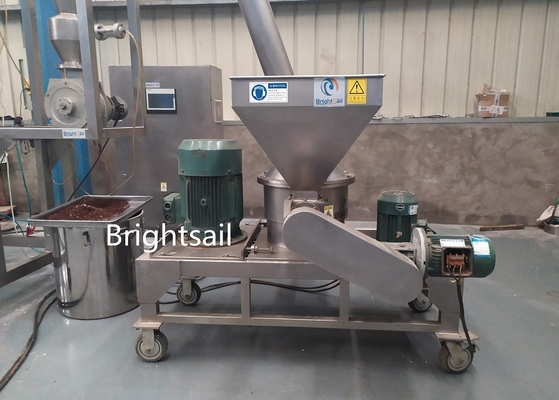

Air Classifier Mill 2500 Mesh Powder Fineness Customize Herb Grinder
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working Method:

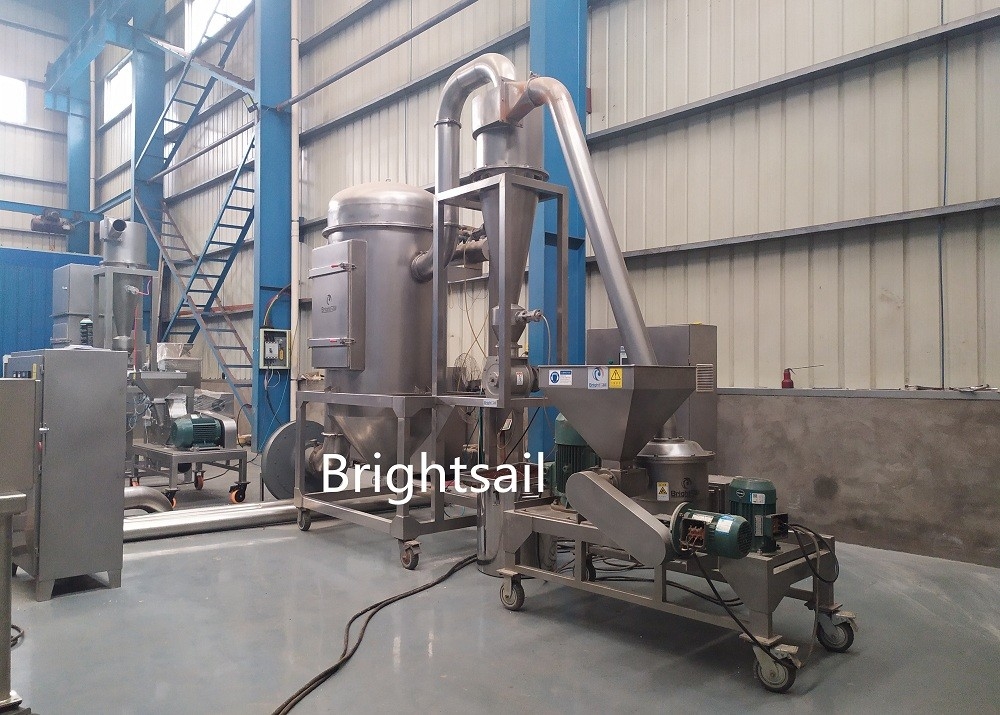

The raw material is fed into the grinding cavity by the screw feeder through the hopper, and after being cut and sheared by the high-speed cutting machine, it is fed into the cyclone separator and the bag filter by the negative pressure suction method, and the discharge meets the product requirements. This is why it can be made into superfine powder and can be used as a fine powder machine (fine powder machine).
Advantages:
1. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
2. Adjust the speed or air volume of the classifier without shutdown to obtain the products with uniform particle size distribution.
3. The upper cover of the main engine is opened by pneumatic spring, and the structure of the engine body can be opened to both sides, so that there will be no obstacles when cleaning and repairing internal parts.
4. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.
5. The bearing system adopts high-speed precision bearings imported from abroad, with stable operation, low vibration and noise.
6. It adopts a rapid pipe removal structure, which is convenient and fast for pipe removal and cleaning.
