Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |

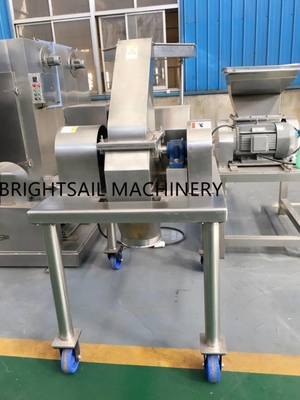

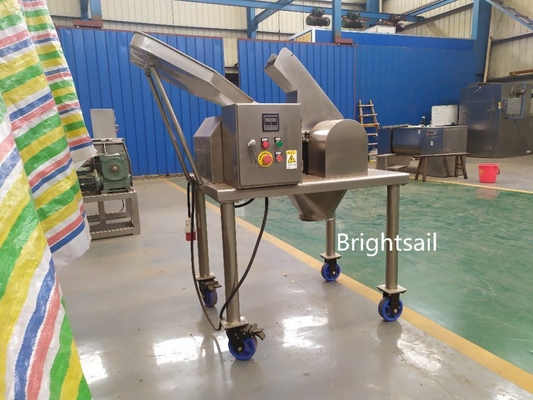

BSF herbal powder grinder machine pharmaceutical fizt mill Chinese herb hammer mill from Brightsail
Our BSF herbal hammer mill is designed by the principle of mixed powder jetting and is of wide use for many fields, such as pharmaceutical, foodstuff and chemical industries.
Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national “GMP” standard.
Working method:

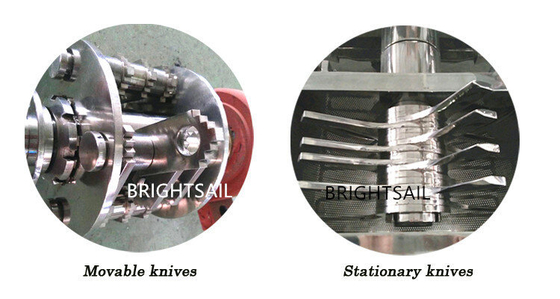

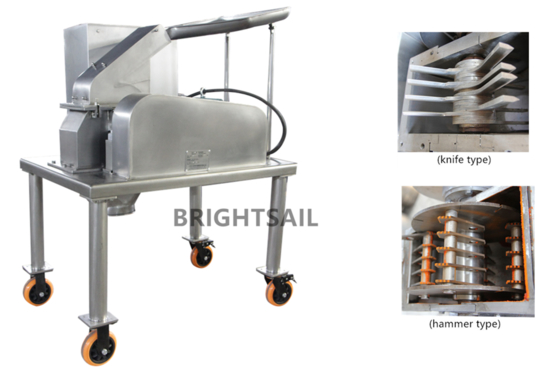

This pharmaceutical fizt mill is high speed running equipment, in which, material is crushed by cutting of high speed blade which is of a sharp edge on one side and an impact blade on the other side. Blades of different sizes and shapes are available for choice according to different materials, and the particle size can be obtained through replacement of screen or adjustment of speed.
Main features:
1. Using high speed rotating blades to crush or grind raw materials to the desired size which is smaller than the perforated plate screen.
2. Speed is adjustable to suit different material.
3. Perforated plate screen: mesh size can be selected to meet the processing requirements.
Our service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship.
Drawing:
This is a video of grinding herbs with pharmaceutical fizt mill
Technical data:

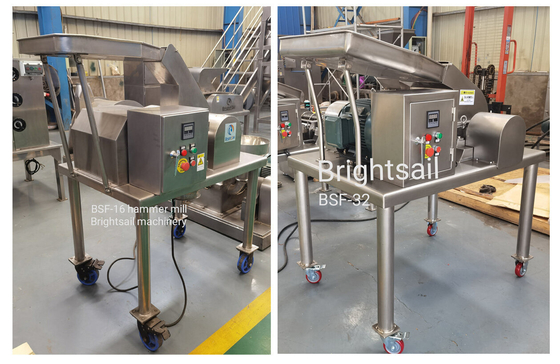

| Model | BSF-16 | BSF-32 |
| Capacity (kg/h) | 50-300 | 100-400 |
| Output size (MeSH) | 12-120 | |
| Grind motor(kw) | 7.5 | 11 |
