Product Details:
|
| Product Name: | Stainless Steel 40-300mesh Sea Moss Powder Grinder Machine | Type: | ACM Pulverizer |
|---|---|---|---|
| Application: | Food, Pharmacy, Chemical, Etc | Input Size: | 0-15mm |
| Output Size: | 60-2500mesh | Function: | Make Powder |
| Machine Material: | SS304, SS316 | Usage: | Making Powder |
| Warranty: | One Year | ||
| Highlight: | Sea Moss Powder Grinder Machine,Stainless Steel Powder Grinder Machine,ACM Powder Grinder pulverizer |
||

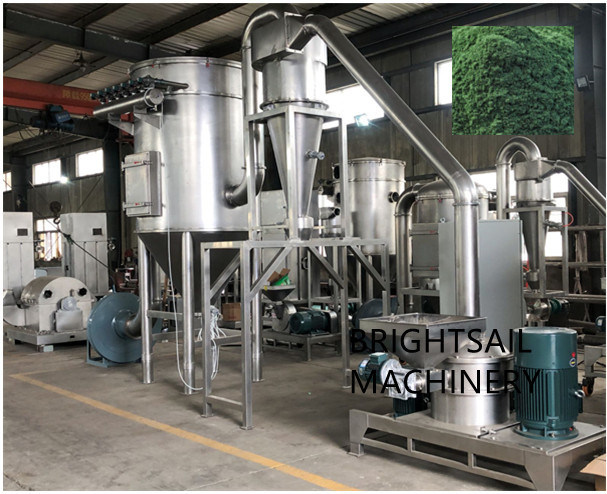

Stainless Steel 40-300mesh Sea Moss Powder Grinder Machine
I. Brief introduction
If you need to make very fine sea moss powder, our BSP series sea moss powder grinder is very suitable. There are air classifying wheels inside, the sea moss can be ground into very fine powder.
II. Advanatges of sea moss powder grinder
1) The powder production process is continuous because the grinder has crusher part, cyclone, dust collector, etc.
2) The output powder can be very fine and the powder size distribution is very even because of the grading wheels used in the mill chamber.
3) No need screen or sieve in mill chamber, change powder particle size by changing speed through inverter
III. Application
The BSP acm pulverizer set is widely applied to food, chemical, pharmacy, etc fields. For example, it can grind dried sea moss, ginger, turmeric,
cassava, chickpeas, rice, etc into powder.
IV. Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
V. Company introduction:
We Brightsail Machinery fouse on the design and production of grinder machines. Within many years in this field, we have accumulated much experiences so we have successfully exported machines to over 70 countries till now.
FAQ
Q: What will be the lead time of the machine?
A: Usually,the lead time is 30-35 work days.
Q: What certificate do you have?
A: We have CE,ISO certificates.
Q: How to install the machine?
A: We provide English electric diagram, and English manual.
99% clients can install the machine by themselves under our guidance.
Q: Which city are you from?
A: We are in Wuxi city, which is near Shanghai, the distance is only ~150KM.
By car, it takes ~2 hours from our city to Shanghai.
