Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine

Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine
Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine

Large Image :  Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSP
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine

Description
Product Name: Cocoa Cake Powder Mill Grinder Pulverizer Application: Food Industry
Input Size: <15mm Fineness: 60-2500 Mesh (depend On Raw Material)
Capacity: 30-2000kg/h Motor: 11-75kw
Material: SS304/SS316L Power Supply: Customized
High Light:

Cocoa Cake Powder Grinder Pulverizer

,

60 kw Cocoa Mill Grinder

,

Cacao Powder Mill Grinder Machine

Cocoa Cake Powder Mill Grinder Pulverizer For Cacao Powder Machine

Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine 0

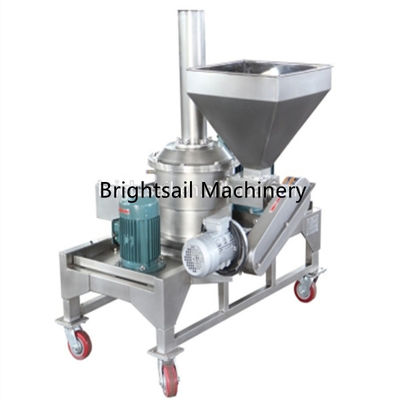

1)Details for cocoa powder grinder machine

This is our BSP ultra-fine pulverizer machine, which is also called air classifier mill. This cocoa powder grinder machine consists of five parts: mill part, cyclone part, dust collection box, blower and electrical contron box. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.



2)Working method of cocoa powder grinder machine

Raw material is delivered into the crush chamber by screw feed, and is cut and sheared by high speed cutters and eddy current generated by the high-frequency vibration. Due to the action of the negative pressure, the powder been crushed goes to public wheel, by grade wheel’s rotating and centrifugal force of the air knife,powder whose size is bigger than grade particle size will be sent back to crush chamber. Qualified powder will go to pipe and be discharged.



3)Technical data of cocoa powder grinder

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100



3)Company Profile

Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as cocoa powder grinding machine, spice powder mixer machine, fruits drying machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation. After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.



4)FAQ

Q: How many countries have you exported?

A: Till 2021, we have exported machines to more than 70 countries. Including USA, European countries,Japan, South American countries,Australia,New Zealand,and lot of Middle-east Asia countries,Southeast Asian countries and Africa.



Cocoa Cake Mill Grinder Pulverizer 60kw For Cacao Powder Machine 1
