Product Details:
Place of Origin: Jiangsu, China
Brand Name: BrightSail
Certification: CE ISO
Model Number: BSP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $13,500.00/sets >=1 sets
Packaging Details: wooden case or container
Supply Ability: 20 Set/Sets per Month

Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder

Description
Output (kg/h): 100 - 4000 Kg/h Feeding Size (mm): 0 - 15 Mm
Output Size (mesh): 60 - 2500 Mesh Power (kW): 12.12
Range Of Spindle Speed(r.p.m): 580 - 2900 R.p.m Material: SUS304, SUS316, Other, SUS304
Condition: New Type: Pulverizer
Voltage: Customized Dimension(L*W*H): Customizable
Weight (KG): 1500 KG Warranty: 1 Year
Key Selling Points: Automatic Showroom Location: None
Marketing Type: Hot Product 2023 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor MOQ: 1 Set
Other Name: Hammer Mill Advantage: High Effieciency
Fineness: 60-2500 Mesh Package: Wooden Case
Feature: High Efficiency Easy Operation Port: SHANGHAI

Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder
Product Description



Introduction Teff Flour Powder Making Machine



BSP Teff Flour Powder Making Machine is one type grinder which can make very fine powder.
It combines impact milling with integrated dynamic classification is the ideal solution for fine and ultrafine grinding of soft to
medium-hard products and is used in all areas of the industry: chemicals, food, pharma, minerals, powder coatings...



Teff Flour Powder Making Machine
Brightsail Teff Flour Powder Making Machine can make 60~2500 mesh based on different raw material, for example:
For sugar and salt grinding, the output size can be 100~1000 mesh fine powder. For spice powder like turmeric, ginger and garlic
grinding, the output size can be 60~400 mesh fine powder.
For herbal leaf grinding like licorice root, moringa leaf, green tea leaf, the output size can be 60~500 mesh.
For chemical powder grinding like Lithium Stearate, Zinc Stearate, tale, the output size can be 200~10000 mesh based on customer's
requests.
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 1

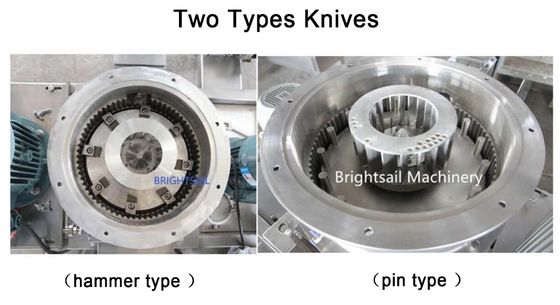

There are two types of knives, hammer type and pin type.Hammer type is standard knife type, which is suitable for various kinds of
raw material, spice, chemical, foods, herbs, grains...
Pin type is customized for crystal material grinding like sugar, salt...with high productivity.
Carbon Black ACM Grinder
Two types classifier wheel positions:
1) Classifier-lower type: standard type adopts on model BSP-250, BSP-350, BSP-450, and BSP-500.
2) Classifier-upper type: easier cleaning, better stability of mechanical properties and more expensive compared with classifier -lower type.
We recommend the most suitable type based on the characteristic of raw materials, and customers' requirements.
Carbon Black ACM Grinder

IMPORTANT FEATURES of our Teff Flour Powder Making Machine :

1. By changing the air volume and classifying rotor speed, the particle size can be easily adjusted. This allows the operator
to change product sizes during operation as well.
2. Grinding and Classifying in one machine, Compact footprint
3. Cool and gentle grinding by using water cooling system or
equipped with a industrial chiller
4. Steep particle size distributions, Sharp top cut control
5. Easily adjustable cut point,
Easy to clean and maintain
6. High availability, Low noise emission, Low specific energy consumption
7. Pressure-shock resistant and wear-protected, Suitable for combined grinding and drying

Technical Data of ACM Pulverizer:


Model
BSP-250
BSP-350
BSP-450
BSP-500
BSP-750
BSP-900
BSP-1000
Capacity (kg/h)
10-100
20-200
40-500
50-800
120-1800
800-2500
1000-3600
Input size (mm)
< 8
< 15
< 15
< 15
< 15
< 20
< 20
Powder fineness(mesh)
60-2500
60-2500
60-2500
60-2500
60-2500
60-2500
60-2500
Crush motor(kw)
5.5
15
18.5
30
55
90
110
Classifier motor(kw)
1.5
1.5
4
5.5
11
15
18.5
Blower (kw)
4
5.5
11
18.5
37
45
75
Feed motor (kw)
0.37
0.55
0.55
1.1
1.5
2.2
2.2
Discharge motor(kw)
0.75
0.75
0.75
1.1
1.5
1.5
1.5
Speed of principle axis (rpm)
~8400
~6500
~5600
~4400
~3100
~2450
~2450
Grading impeller speed (rpm)
~4000
~4000
~4000
~8500
~3000
~3000
~3000

Working Principle :

The raw material is charged to the mill chamber via feed screw of hopper, Comminution is the result of particles impacting against
the grinding elements of the rotor and against the stationary liner. With high beater tip speeds, fineness values are achieved.
The product becomes entrained in the cooling, conveying and classifying airflow generated by the downstream fan, drawn through the
mill and routed along the guide vanes of the shroud ring.

The integrated dynamic classifier is characteristic of the ACM grinder. The product/air mixture is distributed uniformly by the guide shroud ring to the rotating classifier. Because of the two opposing forces and the different masses of the particles, the product is separated in the classifying zone into a coarse fraction and a fine fraction. The coarse mate-rial is rejected by the classifying wheel and returned to the grinding zone for further comminution. The fines pass through the cassifying wheel and exit the mill, and then discharge as final products through cyclone part. The cut point, i.e. the product's maximum particle size is a function of the classifying wheel speed, which can be infinitely adjusted even during operation.


And over fine dust is sent to the dust collecting box, to make the full production free from dust.
Detailed Images
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 4
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 5

Not only Air Classifying Mill

Not only Impact Type Air Classifying Mill Spice grinding machine, we also have other different spice & herb grinding machines for different capacity and fineness mesh.
We provide overall one-stop spice&herb product processing machines and solutions.
We provide washing machine,cutting machine,dryer,
roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 6
Company Information
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 7
Jiangyin Brightsail Machinery focuses on one-stop overall powder process solutions.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 8
Packaging&Shipping
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 9
Teff Flour Powder Making Machine Air Classifier Mill Powder pulverizer set Teff Flour Powder ACM Grinder powder 10

Packaging Details:

Export standard package. Wooden case or container loading.
For small machine, we pack it in wooden case.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with
steel to avoid any shaking or moving during the shipping.
