Product Details:
|
| Product Name: | Broad Bean Powder Grinding Equipment For Broad Bean Flour Mill Grinder | Input Size: | Less Than 10mm |
|---|---|---|---|
| Material: | Stainless Steel | Application: | Food,chemical And Pharmacy Indurties |
| Motor: | 11-75kw | Weight: | Depend |
Broad Bean Powder Grinding Equipment for Broad Bean Flour Mill Grinder
1) Introduction for coconut powder grinder machine

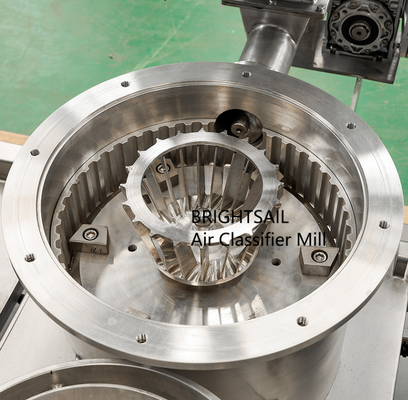

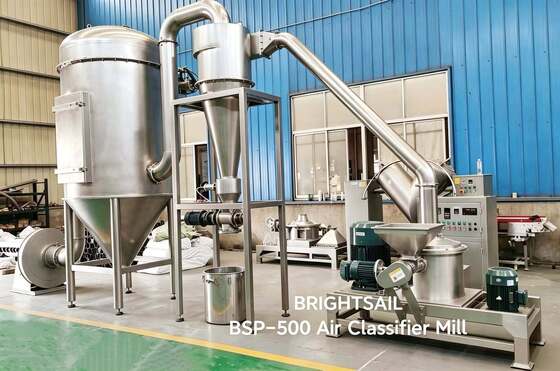

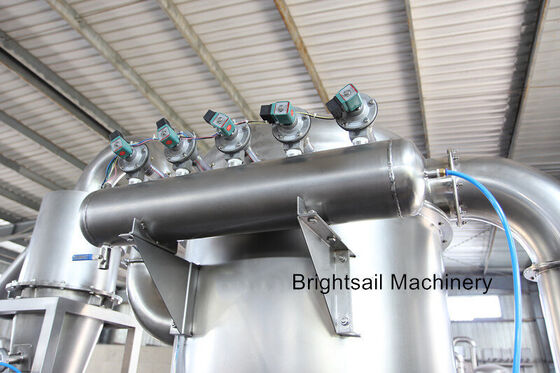

BSP Broad Bean grinder is an advanced powder machine, it has the following advantages: stable technical performance, low noise, less consumption, high efficiency, fineness could be adjusted, lower temperature rise, so it is very suitable for sugar, food powder, herb and spice etc. It is composed of crusher part, powder collecting set, conveying pipe and electric control cabinet.The crusher part has air classification equipment, which makes product granularity arbitrary adjustable, and can prevent the excessive crushing. Powder been crushed will be conveyed to the cyclone and dust collector by negative pressure, then discharged by discharge valve.
2)Technical data of Broad Bean powder grinder

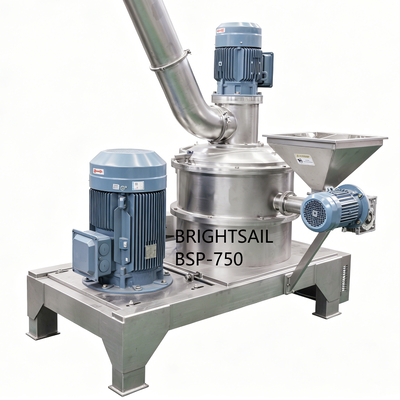

| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
3)Buyer feedback
We have sold such machine to more than 20 countries at present, such as Poland, France, Spain, Portugal, America, Thailand, Indonesia, Myanmar, Honduras, Haiti and so on. And we have won many good feedback and videos from them. Followed is the picture for your reference:
4) FAQ
Q: Does the machine have GMP certificate?
A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.
Q: Does the machine have FDA certificate?
A: Our machine can meet the requirements of FDA, but our machine is not food or pharmaceutical products, our machine doesn’t have FDA certificate.
