Product Details:
|
| Material: | Stainless Steel | Input Size: | Less Than 10mm |
|---|---|---|---|
| Type: | High Speed Hammer Mill | Voltage: | Customized |
| Key Word: | Puffed Corn Kernel Grinder |

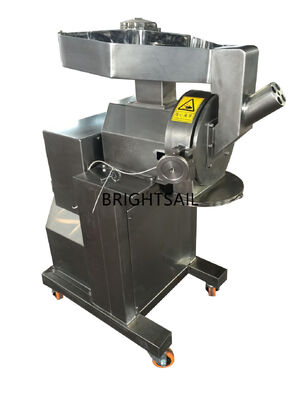

Puffed Corn Kernel high speed Hammer Mill Crusher Machine food Chemical powder small grinder Powder machine
I.What Is The Puffed Corn Kernel high speed Hammer Mill

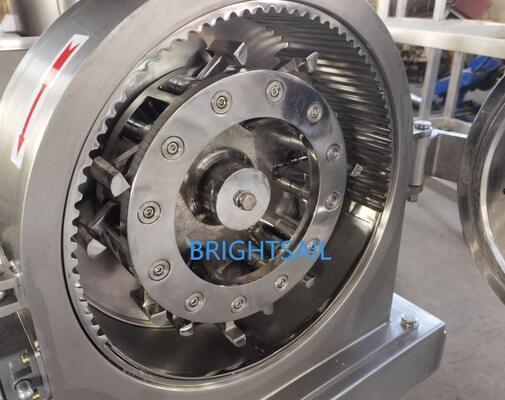

With beating hammers inside the mill chamber, the leaves would come from the powder grinder from the hopper and then get crushed by the beating hammers into fine powder. Sieve is inserted in the chamber to help adjust the output size. This type Puffed Corn Kernel Hammer Mill is very popular among our customers.
II.The advantges
1)High grinding speed, fine leaf powder size.
2)Small size, very easy to move
3)With sieve inside the machine, the output size is adjustable.
4)Wide application: leaf, sugar, rice, red bean, chickpeas, etc
III.Features Of The Grinder
1)high grinding speed, fine output size
2)easy to operate with English instruction on control panel
3)very convenient to move for the installed wheels
IV.Technical Data
| Model | BS-180 | BS-250 | BS-300 |
| Input size (mm) | < 10 (granule) < 15*40*2 (leaf) | ||
| Output size (mesh) | 10-120 | ||
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 |
| Rotating speed (rpm) | 5900/8600 | 4200/6200 | 2600/5100 |
| Power (kw) | 2.2 | 5.5 | 7.5 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 |
| Weight(kg) | 112 | 210 | 296 |
If you are interested in such leaf powder grinder, please let me know:
1)the required output size
2)how many leaves you need to grind per hour
3)the working voltage of your factory
Contact Person: Qian
Tel: 0086 15961653782
Fax: 86-510-8638-9258
