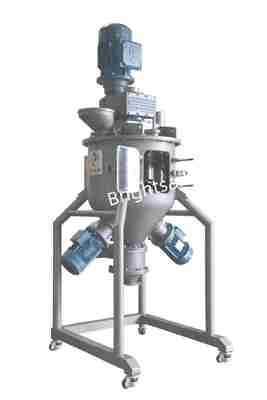

Colorant Vertical Mixer High-Uniformity Pigment & Dye Powder Blending Machine

Colorant Vertical Mixer High-Uniformity Pigment & Dye Powder Blending Machine

BS Series Colorant Vertical Mixer is purpose-built for fast, gentle and dust-controlled blending of pigments, dyes and colorant powders. Its vertical screw/helix design lifts material from the bottom and folds it downward along the wall, achieving homogeneous color dispersion in minutes with minimal dead zones and low product degradation — suitable for food coloring, cosmetic pigment, masterbatch and paint & coating industries.

Working principle:
Material is fed from the top inlet into the cylindrical body.

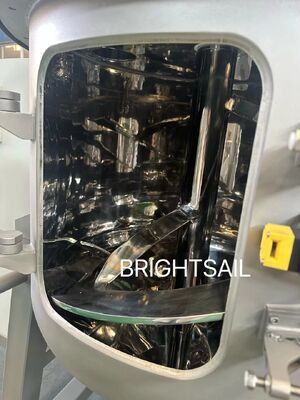

A vertical mixing screw mounted on a rotating arm simultaneously rotates on its own axis and revolves around the vessel wall.
This dual motion lifts the colorant from the bottom and cascades it down — a full 3D circulation that eliminates dead zones.

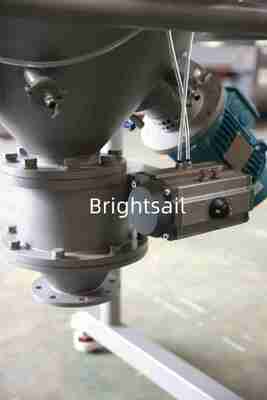

Discharge valve at the bottom allows fast, complete emptying with minimal residue — critical when switching between color shades.

Key features:
1. High mixing uniformity — short cycle time, homogeneous color dispersion, low batch-to-batch color deviation.
2. Low shear & low heat rise — protects color strength and avoids particle agglomeration of heat-sensitive pigments.
3. Well-sealed, low-dust design — enclosed mixing chamber minimizes dust escape and cross-contamination, improving workplace safety.
4. No dead zone, easy discharge — bottom butterfly discharge for fast, near-complete emptying and easy color changeover.
5. Tight color-change cleaning — smooth 304 stainless contact surfaces wipe clean quickly between shades.

FAQ:

1. Q: Can the machine’s voltage be customized?

    A: Yes, sure. Like 220V, 400V, 480V, 600Hz...we can do it.

2. Q: Do you provide material test ? is it free or extra ?

     A: Yes, we could offer the testing for free charge but do not pay the cost of freight.

3. Q: To get a detailed quote for mixer,what buyers shall provide?

     A: 1) What powder or what material do you need to mix?

      2) What is the powder’s density?

      3) How much kg per batch do you need to mix?
