Product Details:
|
| Product Name: | Food Grinder Crusher Pulverizer Air Classifier Mill Powder Making Grinding Pulverizer Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | leaf pulverizer,powder blender machine |
||

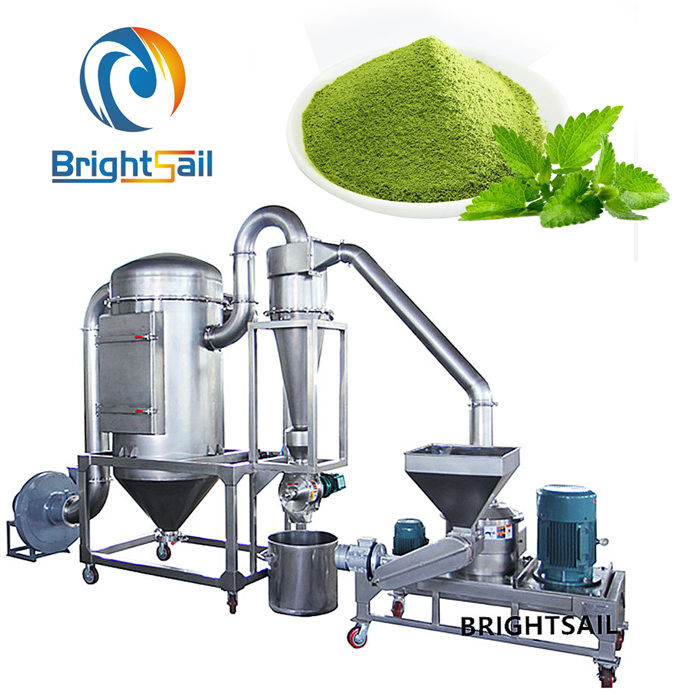

Herbal Powder Grinder Machine Moringa Tea Leaf Powder Pulverizer Easy Operation
BSP ultra-fine pulverizer is a mature product, which is used to make fine powder about 60-2500mesh. It is a kind of mechanical pulverizer. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. for powder grinding.
Working method:
The raw materials, normally less than 10mm, being fed into the grinding chamber by feeder slowly, are impacted, crashed, sheared by rotor and stator at high speed into super fine powder. The powder size is determined by the rotary speed of classifier. So there is no mesh sieve in the unit. The speed of classifier is controlled by inverter. The faster the classifier rotates, the finer the powder is. When the powder reaches the desired size, it is sucked out by fan into cyclone. Most powder are discharged via rotary valve. A little of superfine powder, as they are too light, are sucked into dust collector and filtered by pockets.
Main features:
1) Simple structure, easy in installation and maintenance.
2) Adopting advanced world famous brand motor, electric parts, bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) No need screen, particle size can be changed by change speed.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Our service:
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
Good comments from our customers:
FAQ:
If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by spice grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; etc
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
