Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | leaf pulverizer,powder mill machine |
||

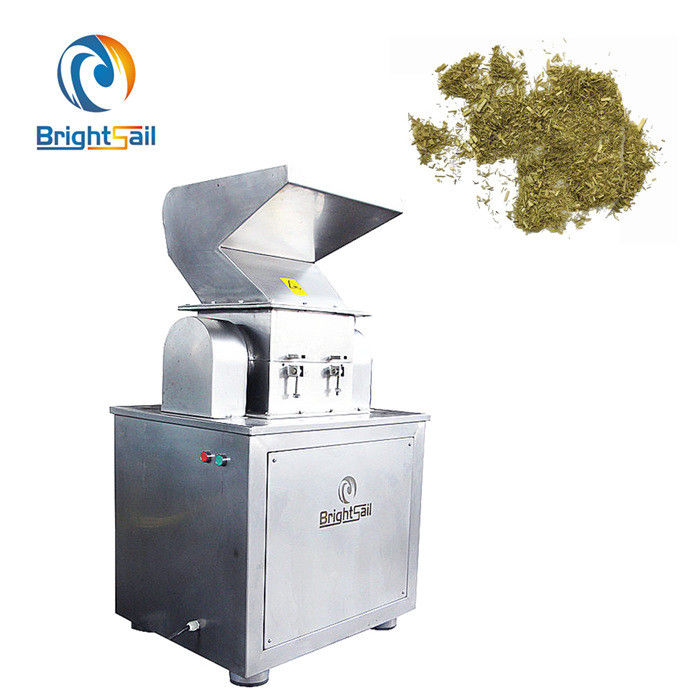

Dry tea leaf flakes herbal crusher machine lemon grass pieces grinder with CE
BSC coarse crusher is a complete set of equipment before crushing in chemical, pharmaceutical, electronic, food and other industries... etc. It is a special equipment for coarse grinding of materials in the preparation process, especially for hard and tough materials such as plastic and rubber, which is not limited by the viscosity, hardness, softness and fiber shape of materials, and has good effect on all materials.
This is one of the most popular products of our company,and we have sold this machine to many coutries, such as Australia, Ireland, Canada, India, Kazakhstan, Peru...etc.
Working method:

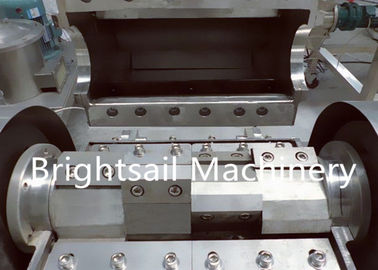

It is horizontal grinding designed to reduce large material into smaller pieces. With counter wheels at the shaft ends,it won't be blocked during operation. Raw material injected in the hopper , crushed and sheared by fixed and rotating blades in grinding chamber. By rotating centrifugal force, the material flows to the exit automatically.The final product size is controlled by screen mesh.The blades are made of sturdy and durable hard alloy steel.
Main features:
The parts in contact with the crushed material of this machine are made of stainless steel and have good corrosion resistance. For easy cleaning, the enclosure is fully enclosed. The interior walls are treated and the surface is flat and smooth, ensuring that the production of materials such as pharmaceuticals, food, chemicals and so on is more in line with national "GMP" standards.
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good comment from customer:
FAQ:
What information do we need to help you choose a perfect machine?
1. Name and feature of the raw material
2. Handling capacity: kg /h, L/h
3. Size you need after grinding
4. The material of construction (stainless steel SUS 304 or 316, )
Note: You'd better send us the relevent picture or some materials you want to feed , it can assure us to help you choose the most suitable machine for you.
