Product Details:
|
| Product Name: | Dry Food Spice Grain Herb Hammer Mill Grinder Pulverizer Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | SS 304/316 | Voltage: | Customized |
| High Light: | leaf pulverizer,powder blender machine |
||

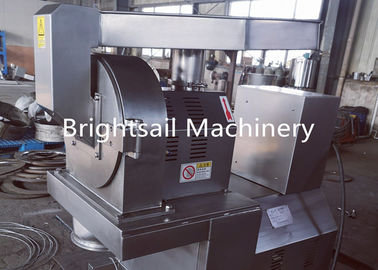

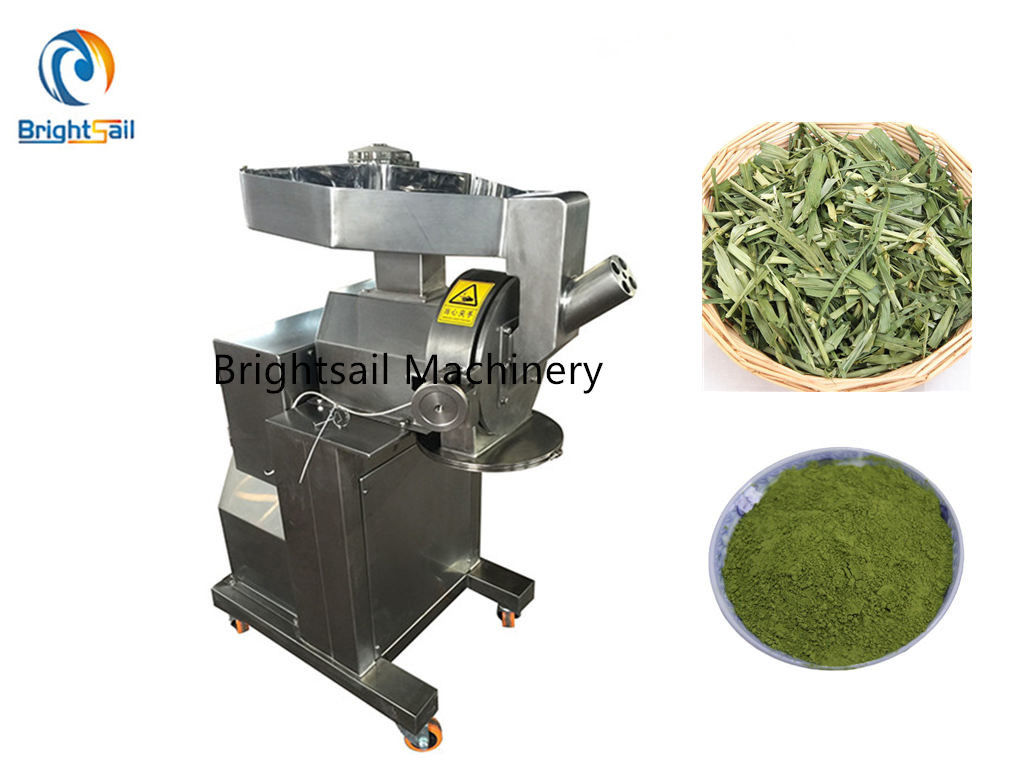

Lab use small herbal powder machine wheat grass lemon leaf grinder hammer mill
Our BS high speed hammer mill is widely used in powder industries such as pharmaceutical, chemical, food, and pharmaceutical materials. Suitable for small batch production or laboratory sample testing. The whole machine is made of high-quality 304 stainless steel. By changing the stainless steel screen in the mill chamber, different grinding finenesses can be obtained.
Working method:
The crushed materials can be directly discharged from the mill chamber.There is one moveable cutter head on the principal axis. And one fixed gear ring is installed in the mill chamber. Under the gear ring, there is the screen. When the principal axis works on high speed, the moveable cutter head runs together. The materials are impacted, rubbed, cutted by the fixed gear ring and moveable hammer. And materials also collide with each other. Under the combined effects, they are crushed into powder.If the particle is smaller than the hole size of sieve, it will pass the sieve and get out of the crushing cavity. If not, the particle will continue to be crushed in the mill cavity.
Main features:
1. For normal material, it can grind into 10-120 mesh.If you want to change the powder particle size,just change the screen in the mill chamber.
2. This machine has different models, capacity from 3-300 kg/h, customers can choose the right model according to their requirement.
3. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
4. It can be equipped with dust collector, no fine powder flying during the grinding process.
Our company:
Brightsail Machinery specializes in the development and manufacturing of pulverizer machines,mixing machines,drying machine,packing machines and other machines, which is applied in food,chemical,pharmaceutical industries.
Upholding the philosophy of "innovation based on sincerity", and committed to the concept of "profession drives to top", we learn to absorb new manufacturing and processing technology, and share with you professional food machinery and processing technology, and provide you with arrays of services, such as machinery process design, equipment manufacturing, installation and debugging, and staff training, etc.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
