Product Details:
|
| Product Name: | Dry Food Spice Grain Herb Hammer Mill Grinder Pulverizer Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | SS 304/316 | Voltage: | Customized |
| High Light: | powder blender machine,powder mill machine |
||

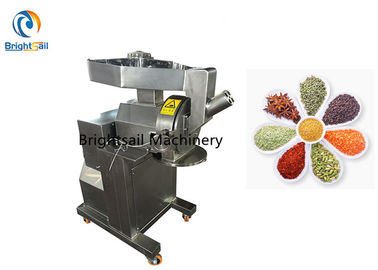

Small herbal powder machine licorice hammer mill grinding machine for home use
Our BS high speed hammer mill is mainly used to grind chemical materials,Chinese medicine herbs containing timber root,tree leaves,grains with low oil,and other rigid & crispy materials,such as ginger, chilli, chickpea, moringa leaves, dry flowers, etc.
This is one of the most popular products in our company,many clients purchased the machine and all of them are very satisfied with it.For example, India, Thailand, America, Canada, Netherlands...etc.
Working method:
The crushed materials can be directly discharged from the mill chamber.There is a movable tool head on the spindle. A fixed ring gear is arranged in the grinding chamber. Under the ring gear, there is a screen. When the spindle is working at high speed, the movable cutterhead runs together. The material is impacted, rubbed and cut by fixed gear ring and movable hammer. Materials also collide with each other. Under the combined action, they are crushed into powder.
Main features:
1. The machine has the features of easycrush the target materials,the size of flour can be achieved by changing of the screen.
2. It has the features of stable running and good efficiency.
3. The crushed material is discharged directly from the grinding chamber of the main frame.
4. The whole machine is made of stainless steel,with smooth inside walls to avoid power accumulation on the inside wall.
5. Those pharmaceutical,chemical and food stuff products from the machine are in accordance with national requirement,achieving “GMP” standard.
Why choose us:
1. Experience. Our company is specialized in manufacturing and selling the machines for many years. And we have sold machines to more than 50 countries.
2. Skilled and Professional man-power support.
3. Strict supply - china control, all the outsource parts which use on our machines are all domestic or international famous branded,so it make sure high quality and long lifetime of our machines.
4. Powerful warehousing ability, so make sure deliver quickly.
5. Our company has international technical service team and provides 24 hours online services and technical supports for customers.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
