Product Details:
|
| Product Name: | Spice Grinder,spice Grinding Machine,spice Pulverizer,spice Powder Making Machine | Material: | SS304/316 |
|---|---|---|---|
| Cpacity: | 80-1200 Kg/h | Fineness: | 10-120 Mesh |
| Voltage: | Customized | Package: | Container |
| High Light: | leaf pulverizer,powder mill machine |
||
Dry kava root herbal powder grinder machine cassava ginger pulverizer with CE

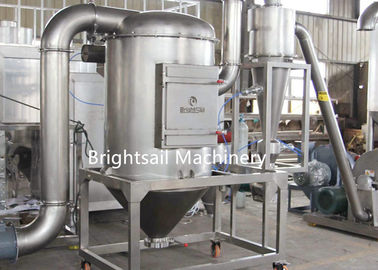

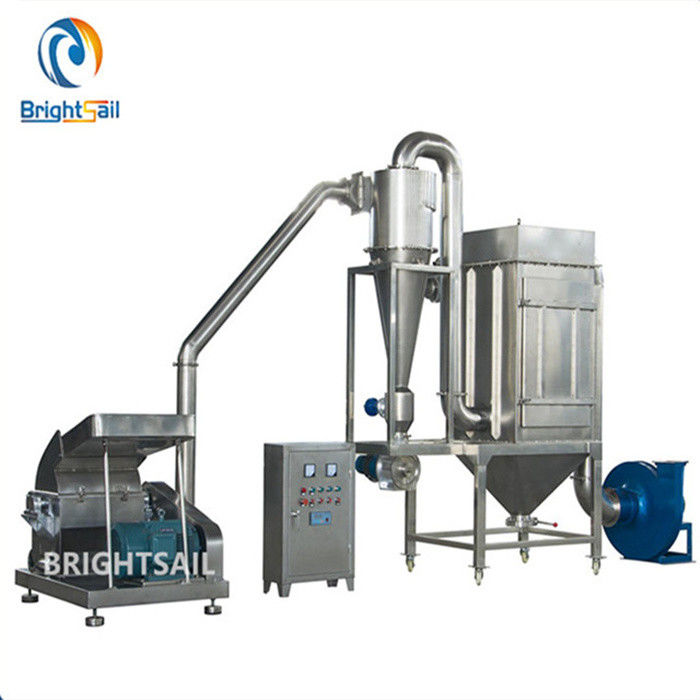

BS pulverizer machine consists of crusher part, cyclone, dust collector, blower and electric control box. It is widely applied in food,chemical,pharmaceutical and other industries. It can grind spice and oil material with oil content reach 10%-20%. The temperature of the grinding chamber remains normal even though after continuous working, so color and smell of material won’t be changed after being ground.
Working method:
The raw material enters into the grinding chamber through the feed hopper. The material, impacted by the high-speed rotary cutters, is thrown to the fixed liners, then is bounced and sheared. Meanwhile, under the impact, cut, rubbing force by turns, the material is micronized well. Under the pull force, the finished product is absorbed into the cyclone through the sieve and discharged from the rotary valve. A little of superfine powder is collected by the filter pockets.It is designed according to GMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.
Main features:
Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national “GMP” standard.
Our company:
Founded in 2002, Brightsail Machinery Co.,Ltd is specialized in manufacturing grinding machine, pulverizer, mixer, charging machine, dryer, packing machine etc, which are widely used in foodstuff, pharmaceutical and chemical industries, etc.Over these years, the company has made elaborate design and improvement, on the basis of absorbing features and advantages of similar products both at home and abroad. For now, we have exported machines to more than 50 countries aroud the world, including USA, Germany, Europe, South America, Mid-east area, South Asia, Africa, Australia and New Zealand.Welcome new and old customers to do business with us!
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |
