Product Details:
|
| Product Name: | Spice Grinder,spice Grinding Machine,spice Pulverizer,spice Powder Making Machine | Material: | SS304/316 |
|---|---|---|---|
| Cpacity: | 80-1200 Kg/h | Fineness: | 10-120 Mesh |
| Voltage: | Customized | Package: | Container |
| High Light: | leaf pulverizer,powder mill machine |
||
Electric herbal powder machine plantain Chinese herb grinder mill machine
BS pulverizer machine consists of three parts: main engine, auxiliary machine and electronic control box. It has the characteristics of wind selection, no screen or mesh, and the granularity of processing materials is uniform.
With hammer type knife, this machine has a very good effect for grinding spices,Chinese herbs,cassava,grains and other materials which are widely applied in food,chemical,pharmacetuical industries.
Working method:

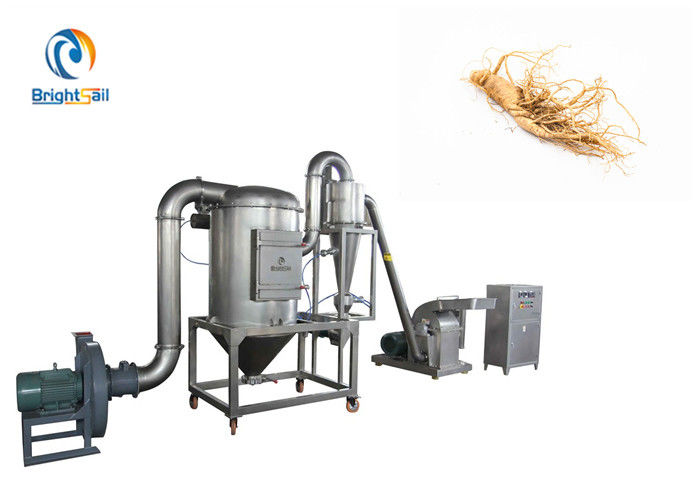

The machine is made up of five parts: crusher part,cyclone,dust collecting box,blower and control box. It uses the relative motion between the fixed plate and the movable hammer to make the material impacted and broken under the action of centrifugal force. There is screen mesh in mill chamber,if the particle is smaller than the hole size of screen mesh, it will pass the screen mesh and get out of the mill chamber by centrifuge force.If not, the particle will continue to be crushed in the mill chamber.
Main features:
The parts contacted with crushed materials are made of stainless steel, which has good corrosion resistance. The shell is fully enclosed for easy cleaning. The interior walls are treated to achieve uniformity and smoothness of the surface, thus ensuring that the production of pharmaceutical, food and chemical materials, more in line with the national "GMP" standard.
Our company:
We are professional manufacturer with decade experience. Quality is the our first concern. All the efforts we make is to achieve the full satisfactions of our customers.
Quality is thoroughly carried out in the entire procedures from material choosing, machine production, equipment testing and packaging, on time delivery and excellent after sales service. Our machines are mainly featured by the durability and hygienic processing.
Our machines had delivered to worldwide, we provide prompt service to our customers, which includes:
Guidance and suggestions to machines' choice
Factory/shop layout guidance
Complete installation and commissioning
1 year warranty, service life technical support.
All types of spares required in our product range
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |
