Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Input Size: | <15 Mm |
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |
| High Light: | leaf pulverizer,powder mill machine |
||

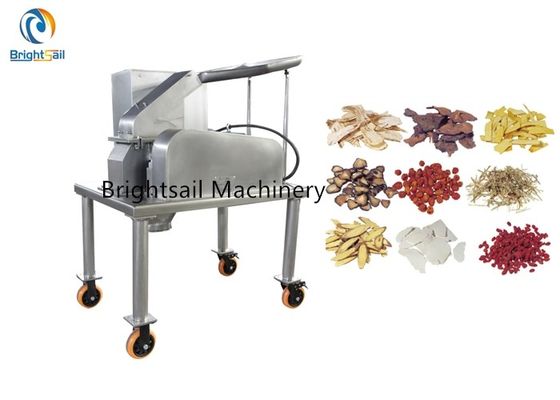

Small herbal powder grinder machine kava root cinnamon ginseng pulverizer
Our BSF high efficient hammer mill is developed by mixing powder injection technology and is widely used for material grinding in pharmaceutical, chemical, food and other industries.Such as spice, herbs, grains, tea leaves, chemical products, etc.
Working method:
This machine is a high speed running one. The target material is smashed by the cutting and grinding of high speed knifes, which the figure and size of knifes can be selected in accordance with diferent material and the size of granules can be acquired by screen changing or speed-regulating.
Main features:
1) The linear structure is simple and easy to install and maintain.
2) The world's advanced brand parts are used in pneumatic parts, electrical parts and operation parts.
3) Change the powder particle size by changing the screen or the speed of inverter.
After-sales service:
1. On-line/sale service :
Our professional responding-team 24 hours online to solve any problem for you. And your email will be reply within 12 hours.
2. After-sale service:
If there are any problem about our goods, we will arrange repair and maintenance if the problem occur in warranty.
If you have any questions about Clean Clearance our shipping agent also can help you out.
If your need, we can help you do custom clearance, assistance to build factory, installation and clerks training.
Technical data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
