Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Input Size: | <15 Mm |
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |
| High Light: | powder blender machine,powder mill machine |
||

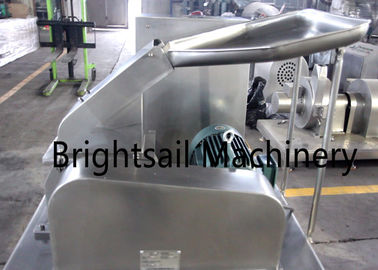

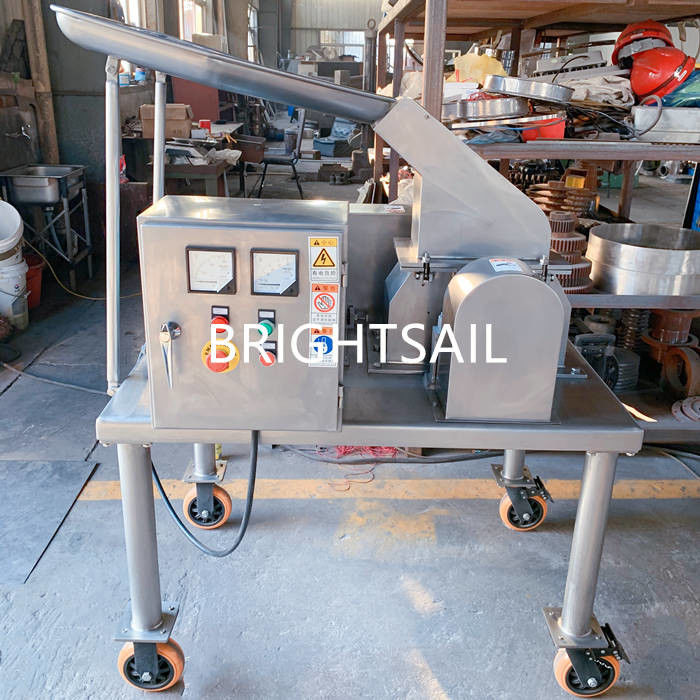

Chinese herbal powder grinder machine cassava leaf stevia flour milling machine
Our BSF high efficient hammer mill a blades type grinder. It can grind powder at 12-120mesh. If you want to get different sizes of powder, you can change the screen or speed of inverter.
This machine is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. Such as spices, herbs, grains, chemical materials and so on.
Working method:
This is a high-speed machine. The raw material is crushed by cutting with a high-speed knife. The high-speed knife has a sharp knife on one side and an impact knife on the other. We have a variety of tools for you to choose from. Powder with different fineness can be obtained by changing the sieve or adjusting the speed.
Main features:
Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national “GMP” standard.
Packing and shipping:
Standard wooden case package, or in container without packing, to prevent them from destroying during transportation.
Delivery by Sea, Express(DHL, Fedex etc), By air
We will choose the most safety, convenient and economic way to delivery goods.
After-sales service:
Guidance and suggestions to machines' choice
Working video and commissioning available.
Factory/shop layout guidance
Complete installation and commissioning
Technical data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
