Product Details:
|
| Warranty: | One Year | Capacity: | 100-2000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Motor: | 22-75kw |
| Discharge Motor: | 0.75-1.5kw | Blower: | 7.5-18.5 Kw |
| Voltage: | Customized | Package: | Container |
| High Light: | powder blender machine,powder mill machine |
||

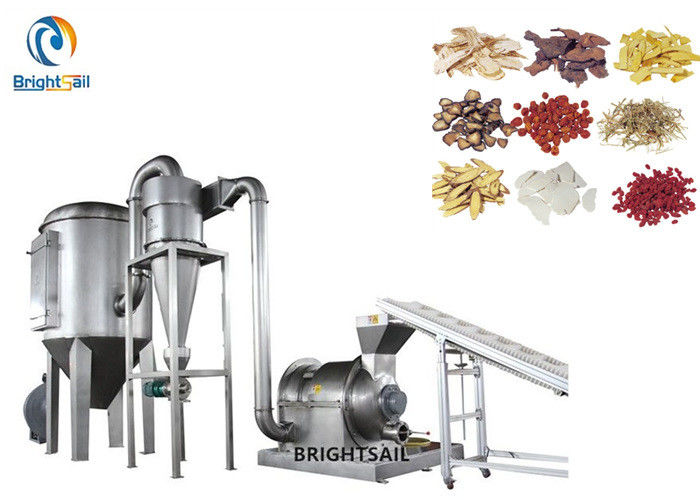

Hemp herbal powder grinding machine cassava leaf dried seaweed pulverizer

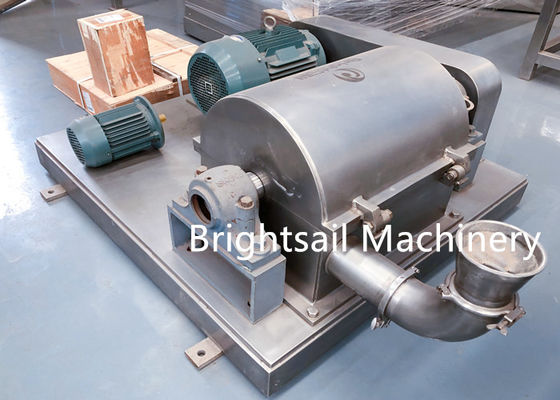

BSDF advanced hammer mill is our latest advanced hammer mill. It combines coarse crushing area, middle grinding area, fine grinding area (3 grinding areas), and grinds the material 3 times at the same time. The material can be easily made into 10-120 mesh powder.
It is suitable for grinding spices, herbs, grains, fertilizer, etc, which widely applied in food, chemical, pharmaceutical and other industries.
Working method:
The materials to be crushed are fed from the top feed port, and then sucked into the coarse crushing area by the negative pressure of the fan for coarse crushing, and the large particles after coarse crushing enter the medium crushing area for the second crushing. After the secondary crushing, the particles are separated from each other by the grading wheel, and the particles that meet the requirements of fine crushing enter the fine crushing area for crushing. The large particles that do not meet the requirements of the fine crushing area continue to remain in the medium crushing area for re crushing. The pulverized powder in the fine crushing area is discharged from the crushing chamber through the negative pressure air flow of the fan through the discharge port with the assistance of the blower wheel, and then enters the cyclone separator. The finished product is discharged by itself through the electric rotary valve at the bottom of the separator. The dust containing gas enters into the dedusting box, the powder is blocked in the dedusting box by the cloth bag inside the dedusting box, and the clean gas is discharged from the fan outlet.
Main features:
1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material grinding process is fast and reliable, grinding fitness is adjustable by changing the speed of inverter.
4. The surface of the multifunctional grinding machine is smooth, easy to clean.
Our service:
A.Technical service
1. We calculate the capacity and recommend the best models according to your demand.
2. We supply you the professional technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at your factory if you need.
B. After-sales service
1. Technical support for your installation,operation and maintenance.
2. One year warranty, and you can pay for extended warranty if necessary.
3. Spare parts and technical support at the most economic prices after the warranty.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
