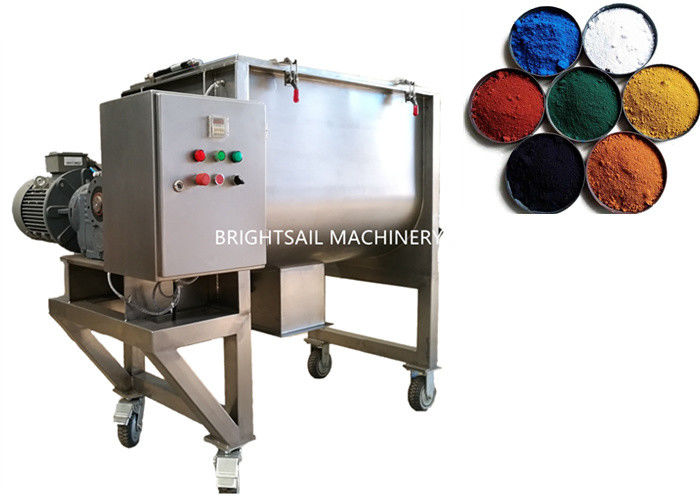

Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour

Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour
Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour
Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour

Large Image :  Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSR
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour

Description
Product Name: Dry Powder Mixer Blender Ribbon Flour Mixing Blending Machine Application: Food,chemical,pharmaceutical,etc
Power: 3-90kw Speed: 17-62 Rpm
Material: SUS304,SUS 316,carbon Steel Volume: 50-20000L
Package: Wooden Case Or Container Warranty: One Year
High Light:

leaf pulverizer

,

powder blender machine

Herbal powder blender machine pharmaceutical paint flour ribbon mixer machine

Our BSR ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule. especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material.



Working method:

Driven by a direct reducer, the rotor of the mixer rotates in orientation. In the process of rotation, the screw belt pushes the material along the axis on the one hand and throws the material over the front of the belt on the other. The outer spiral belt makes the material always move to the middle of the cylinder, and the inner spiral belt makes the material move from the middle to the two ends, so the material forms two circulation logistics in the movement, and in the process of repeated circulation flow.



Main features:

1) Strong and fast mixing: Strong and fast mixing can be achieved due to effective drive design and variable speed blending.
2) High-degree of homogeneity: When material is added at the rate of 0.1%, the homogeneity can reach 98% in short time.
3) Heating jacket: A heating jacket can be equipped as an option in the mixing tank shell for heating or drying process.
4) Liquid spray nozzle: Spray nozzle can be equipped as an option to add liquid additives which can be evenly sprayed onto the mixture.
5) Well bearing sealing: Shaft sealing is the combination of Teflon packing sealing and air-tight sealing to make sure long life-span.
6) Automatic discharging valve: The combined discharge valve is pneumatic planer flap valve. The flap plate can perfectly match the mixing tank inner wall to make sure no dead corner.



Why choose us:

1. We enjoy high reputation for years of sincerity business, have thousands of customers from all over the world.
2. We have advanced test equipments and production line of international standard to ensure the stability for our products quality.
3. Brightsail has trained a group of professional staff,which are full of energy, ambitious, innovation. Our outstanding team solve the technology and products as well as various of issues with their professional and passion.
4. Via the world wide internet, we can get many information of products demand and then to achieve the scale of supply.it also means which save the purchase cost and get mutual success.
5. We have sold our products to more than 50 countries and won great reputation from them.
6. Reliable quality and excellent service is our commitment to every customers. We firmly believe our customer’s success is our success, at Brightsail, we are always committed to giving our customers the reliable products and services that they expect and deserve.


Technical data:

Model Max work volume(L) Speed(rpm) Motor(kw) Overall size(L*W*H)(mm) Weight(kg)
BSR-100 60L 62 3 1080*758*615 330
BSR-300 180L 49 5.5 1550*812*1015 780
BSR-500 300L 46 7.5 1975*1059*1120 955
BSR-1000 600L 35 11 2340*1380*1455 1400
BSR-2000 1200L 33 15 2480*1651*1805 2500
BSR-3000 1800L 33 18.5 2945*1896*1980 3300
BSR-4000 2400L 29 22 3038*1946*2205 3600
BSR-5000 3000L 29 30 3932*2010*2035 4320
BSR-6000 3600L 26 37 3938*1882*2246 5300
BSR-8000 4800L 26 45 3986*2160*2516 6800
BSR-10000 6000L 19 55 4500*2270*2667 8900
BSR-15000 9000L 17 75 5363*2470*3020 9950
BSR-20000 12000L 17 90 5670*2650*3497 11140

Herbal Powder Blender Machine , Ribbon Mixer Machine For Pharmaceutical Paint Flour 0
