Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Capacity: | 10-500 Kg/h | Fineness: | 12-120mesh |
| Voltage: | Customized | Package: | Wooden Case |
| High Light: | 4kw wheatgrass grinder,4kw wheat grass grinding machine |
||

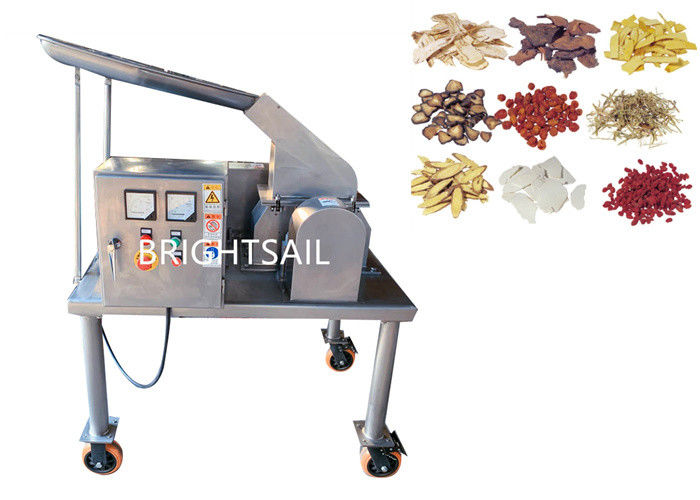

Herbal powder mill machine Chinese herb neem leaf wheatgrass grinder machine
Our BSF high efficient hammer mill uses the principle of mixed powder injection to crush dry materials into powder or small granules, and is widely used in pharmaceutical, chemical, food, construction and other industries. It can also be used in the laboratory.
Working method:

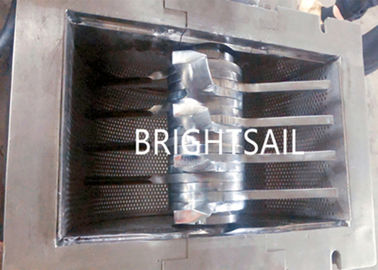

The speed of our BSF high efficient hammer mill is very fast,the raw material is crushed by the cutting of the high-speed knife, which has a sharp knife on one side and an impact knife on the other. When the powder particles are smaller than the mesh size, they will be thrown out of the mesh and then discharged into the crusher chamber, and the remaining large particles will be continuously crushed until they are smaller than the mesh size, and then discharged.
Main feature:
1.Simple in structure, few occupied space
2.Easy to clean, easy to operate
3.Pulleys are installed at the bottom of the machine, easy to move
4.Changing powder size by changing difference size of sieve mesh
Technical data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
