Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Capacity: | 10-500kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |
| High Light: | 500kg/h tea leaf grinder equipment,500kg/h Tea Leaf Grinding Machine,11kw tea leaf grinder equipment |
||

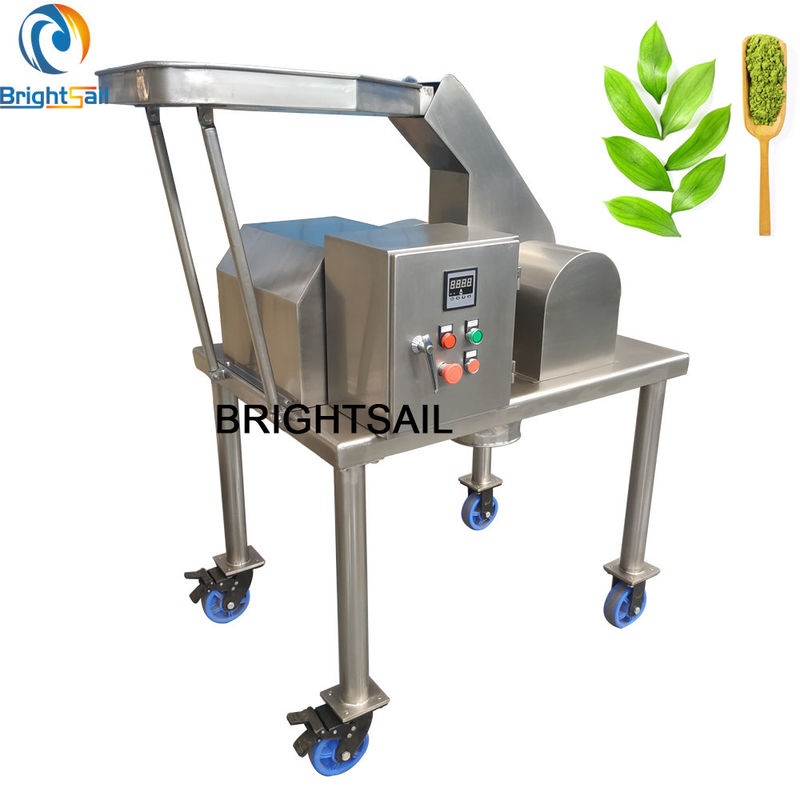

12-120 mesh Tea Leaf Grinder In Grinding Equipment High-Efficient
Our BSF tea leaf grinding machine is designed by the principle of mixed powder jetting and is of wide use for many fields, such as pharmaceutical, foodstuff and chemical and other industries.
Working Method:
The crushing machine is a high-speed equipment. The material is crushed by a high-speed sharp blade on one side and an impact blade on the other side. Different sizes and shapes of blades can be selected according to different materials, and the particle size can be obtained by changing the screen surface or adjusting the speed.
Main Features:
1. The structure is simple, the crushing chamber is easy to install and disassemble, and easy to clean.
2. Smooth operation, low noise and low vibration.
3. The operation is simple, and the particle size can be controlled by changing the screen.
4. Pneumatic components, electrical components, and operating components all adopt the world's advanced brands.
Technical Data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
Drawing:
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
